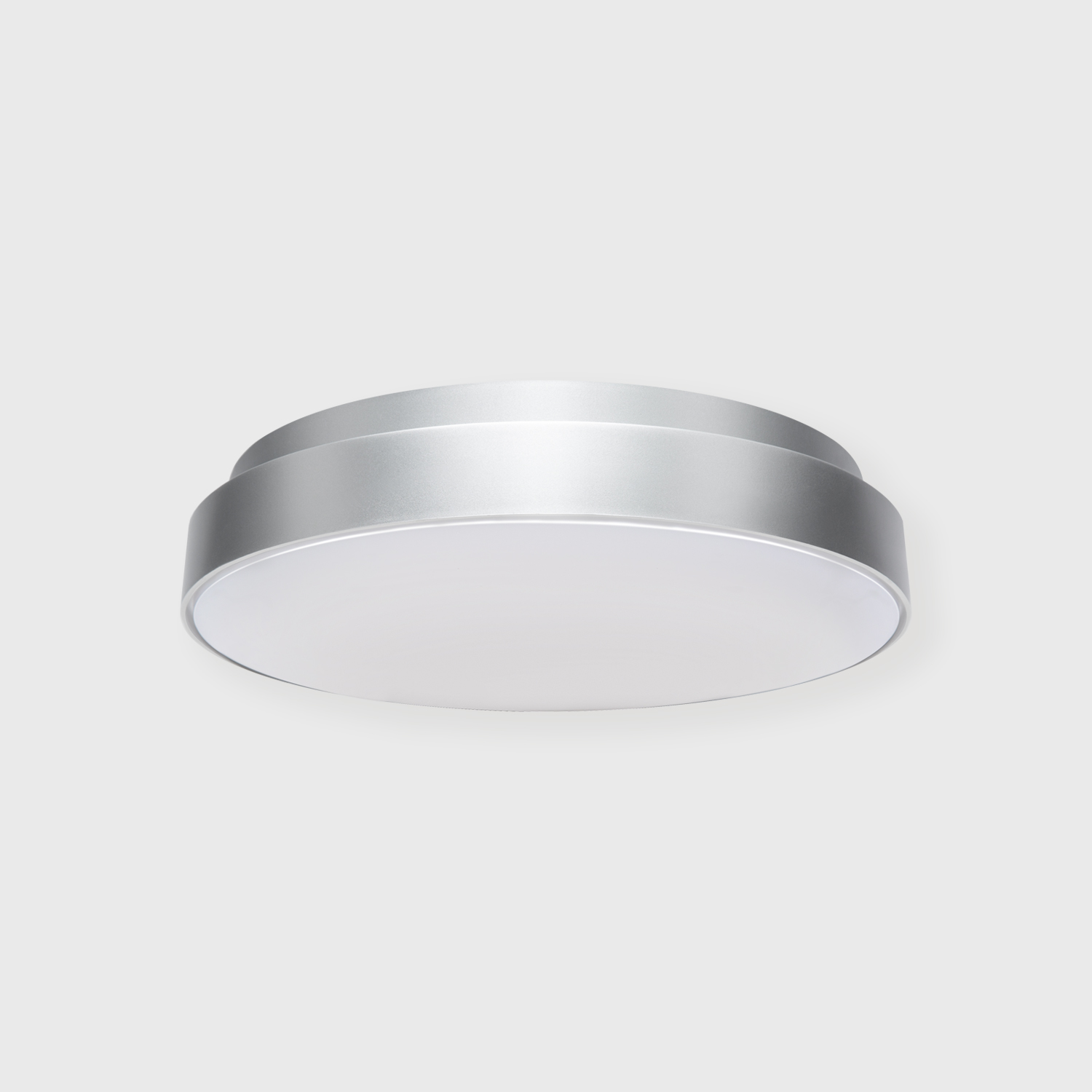

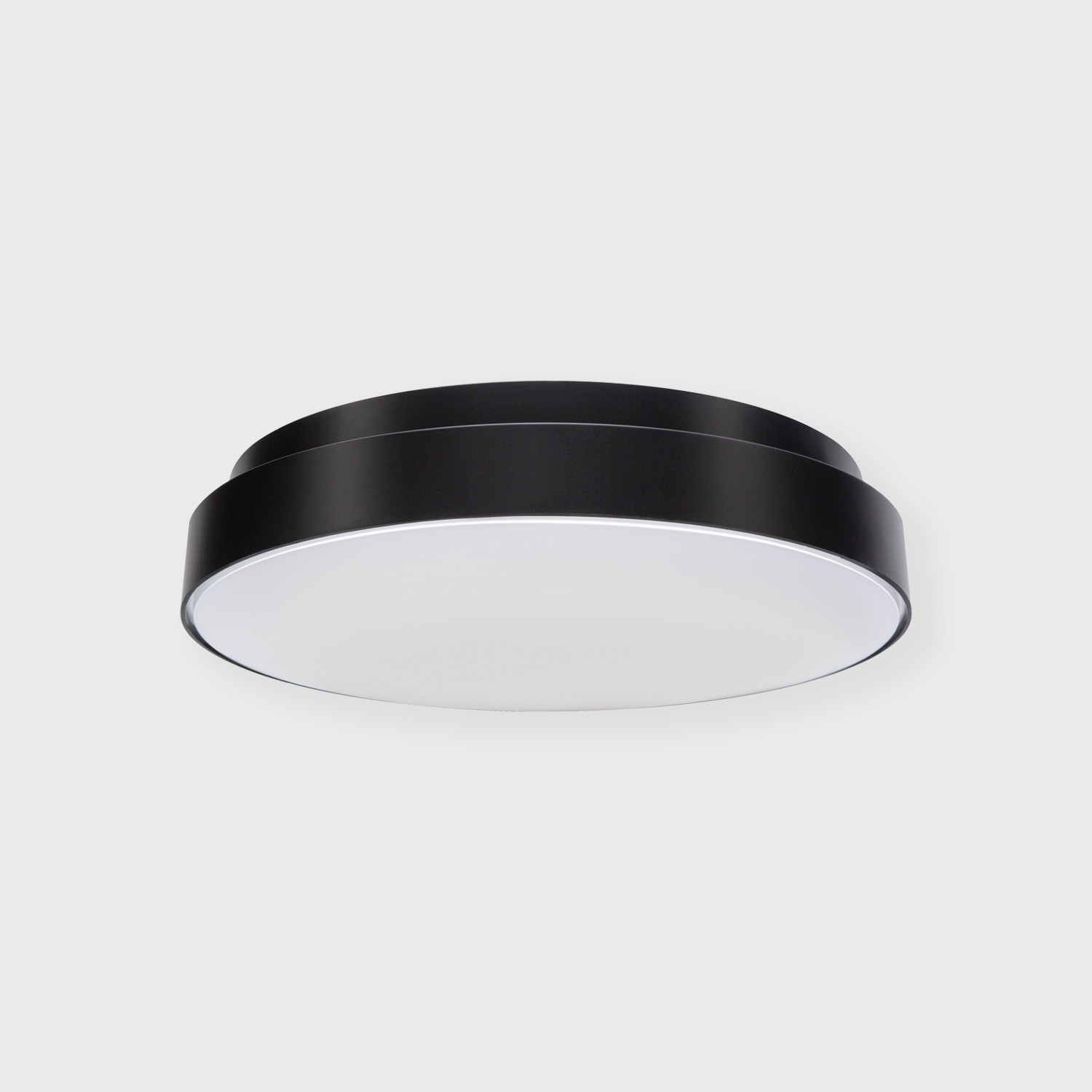

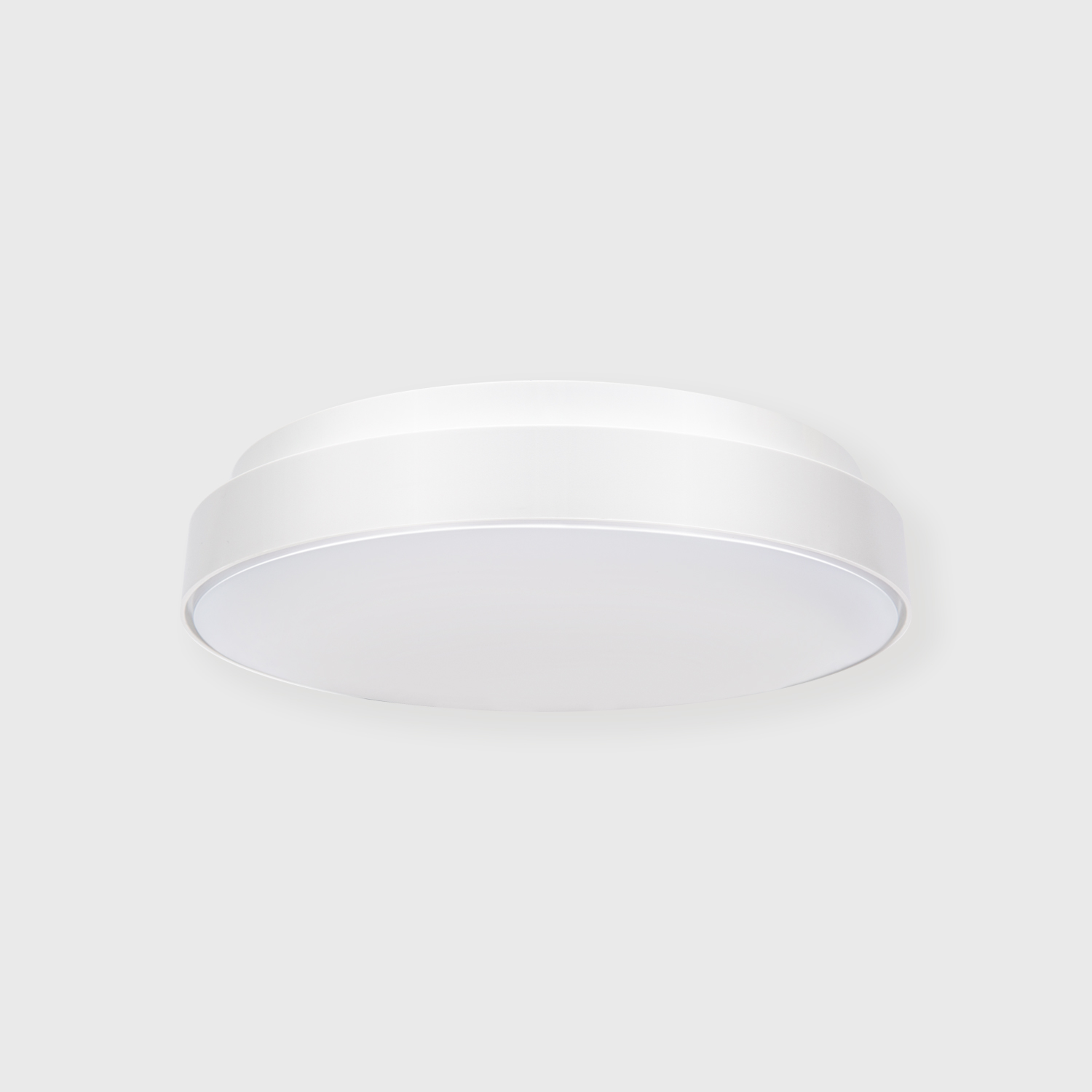

Pura Trim 270
Perfectly designed. Perfectly even. Perfectly round.
The Pura Trim is a clean, durable design style that reveals an architectonic and balanced character. Its various functions, multiple applications and uniform light distribution, can be used in all areas.
npk design, the Netherlands
Specifications
- Materials: Polycarbonate
- Finishes: Black/White/Silver
- LED Power: 24W/18W/10W Switch
- Lumens: 2400lm/1800lm/1000lm
- Efficacy: 100lm/W
- CCT: 3000K/4000K Switch
- IP Rating: IP54
- CRI: 90
- SDCM: <3
- UGR: <23
- Beam Angles: 120°
- Lifetime: >50,000h L80
- Warranty: 5 Years
Features and Details
- Designed by NPK design Netherlands
- Contemporary and durable design
- Push-locking makes it ease installation
- Can be surface mounted, wall mounted, suspended or on track
- Flicker free build-in driver
- Triac Dimming (range 1%-100%)
- DALI Dimming (DT6)
- Motion detection (Corridor Function)(Corridor Function integrated with Emergency pack)(Master-Slave Function on/off only)
- Emergency light (60 mins @ 3W)
- Ideal for both residentail and commerical applications
Accessories
- Pendant kit (1.5m)
- Recessed kit
- Track adapter
Configure
| SKU | Finish | CCT | CRI | Lumen | Dimming | Function | |
|---|---|---|---|---|---|---|---|
| PT270-BO241810D | Black (RAL 9005) | 3000K/4000K | >90 | 2400/1800/1000lm | Phase Cut | ||
| PT270-BO241810D-D | Black (RAL 9005) | 3000K/4000K | >90 | 2400/1800/1000lm | DALI | ||
| PT270-BO241810D-E | Black (RAL 9005) | 3000K/4000K | >90 | 2400/1800/1000lm | Emergency light | ||
| PT270-BO241810D-M | Black (RAL 9005) | 3000K/4000K | >90 | 2400/1800/1000lm | Motion sensor | ||
| PT270-SO241810D | Silver (RAL 9006) | 3000K/4000K | >90 | 2400/1800/1000lm | Phase Cut | ||
| PT270-SO241810D-D | Silver (RAL 9006) | 3000K/4000K | >90 | 2400/1800/1000lm | DALI | ||
| PT270-SO241810D-E | Silver (RAL 9006) | 3000K/4000K | >90 | 2400/1800/1000lm | Emergency light | ||
| PT270-SO241810D-M | Silver (RAL 9006) | 3000K/4000K | >90 | 2400/1800/1000lm | Motion sensor | ||
| PT270-WO241810D | White (RAL 9016) | 3000K/4000K | >90 | 2400/1800/1000lm | Phase Cut | ||
| PT270-WO241810D-D | White (RAL 9016) | 3000K/4000K | >90 | 2400/1800/1000lm | DALI | ||
| PT270-WO241810D-E | White (RAL 9016) | 3000K/4000K | >90 | 2400/1800/1000lm | Emergency light | ||
| PT270-WO241810D-M | White (RAL 9016) | 3000K/4000K | >90 | 2400/1800/1000lm | Motion sensor |
