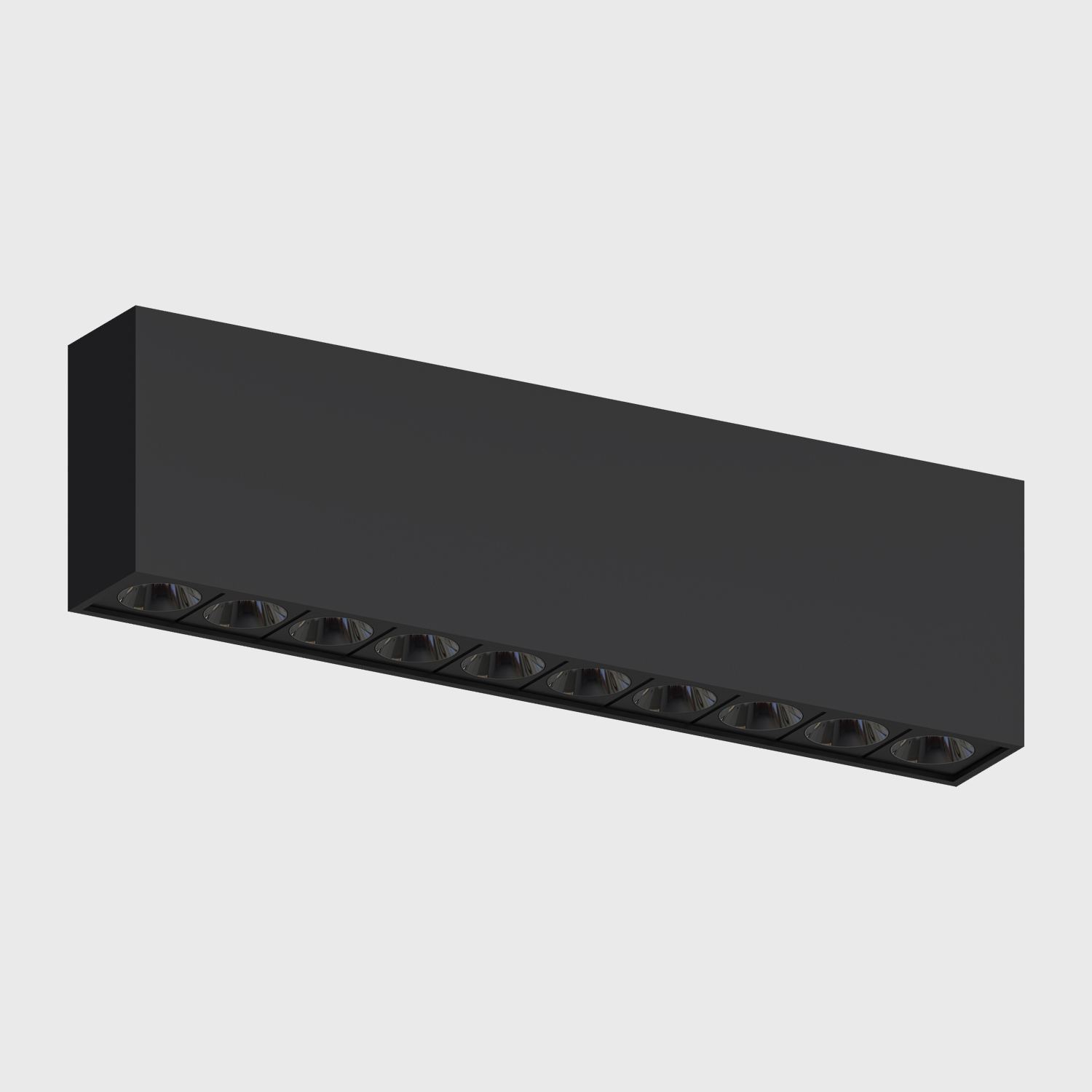

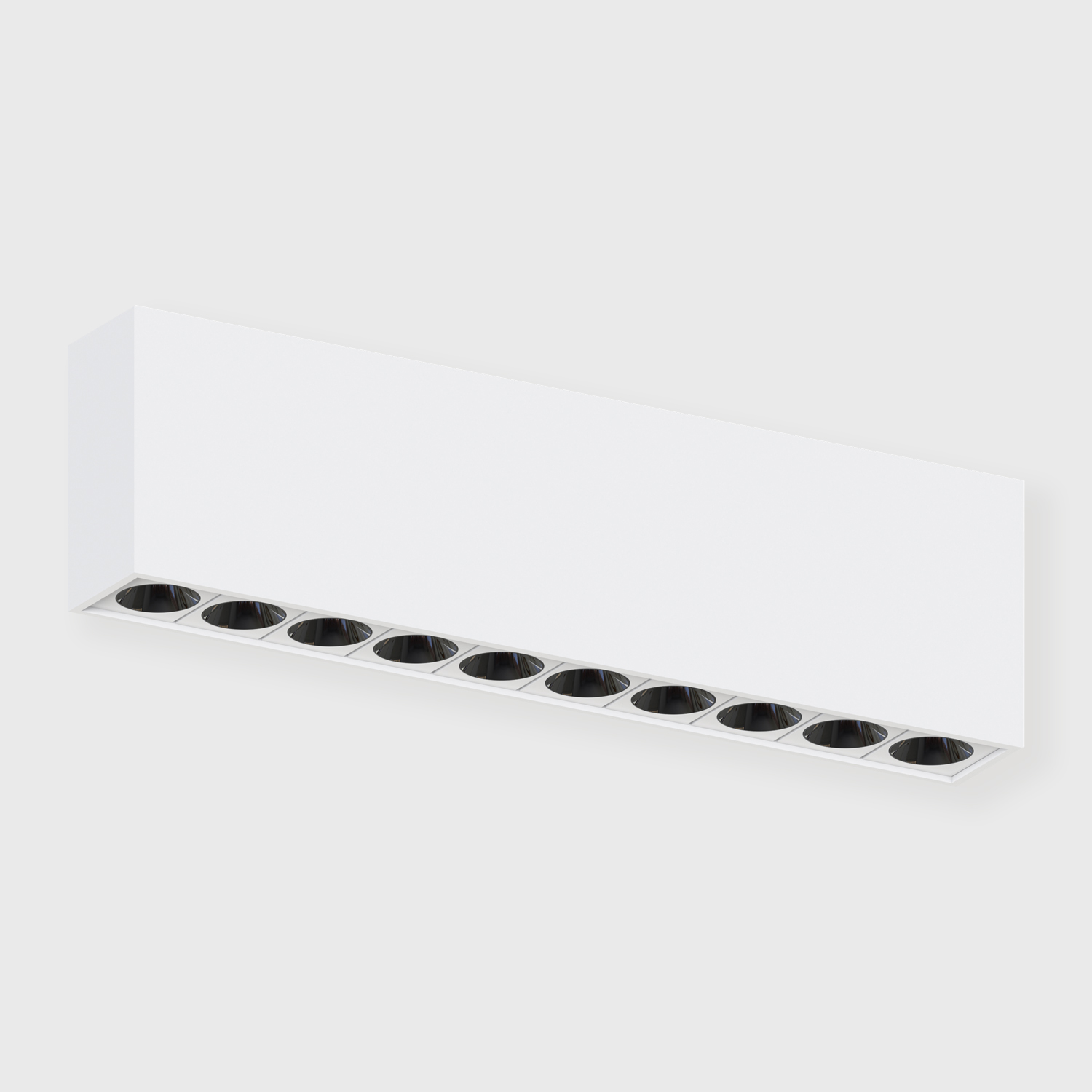

Coda 10 heads Build-on

Mini size, very powerful and energy-efficient illumination

With a minimal design and optimum efficiency, the Coda surface mounted linear downlight provides discreet general and accent lighting for high-end residential, office, retail, hotels, and anywhere that can use great light performance.

Part of the Coda collection

Enquire about this product
Specifications
  • Materials: Powder Coated Aluminium
  • Finishes: Black/White
  • LED Power: 24W Switch
  • Lumens:1680lm
  • Efficacy: 71lm/W
  • CCT: 3000K/4000K 2700K on request
  • IP Rating: IP54
  • CRI: 90+
  • SDCM: <3
  • UGR: <10

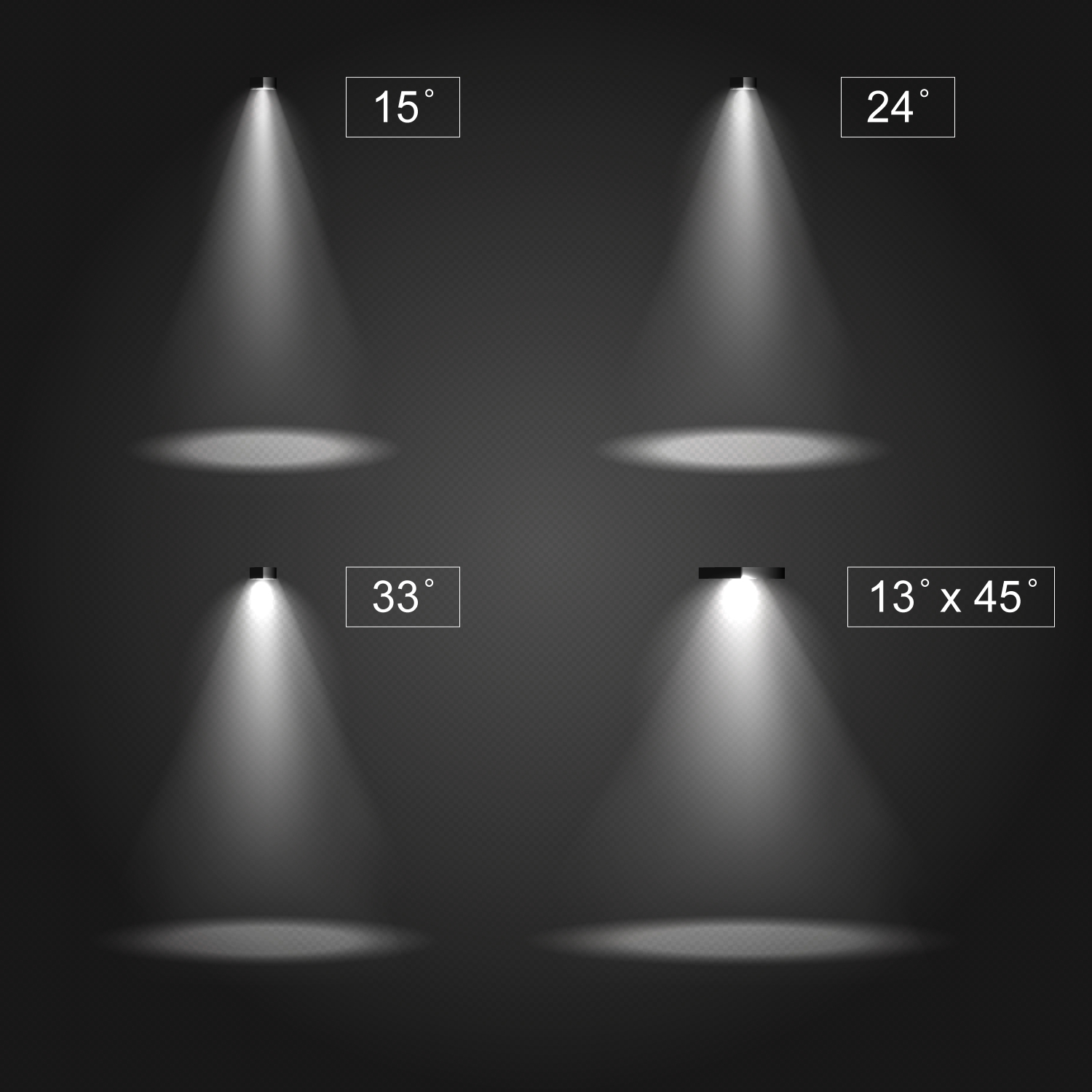

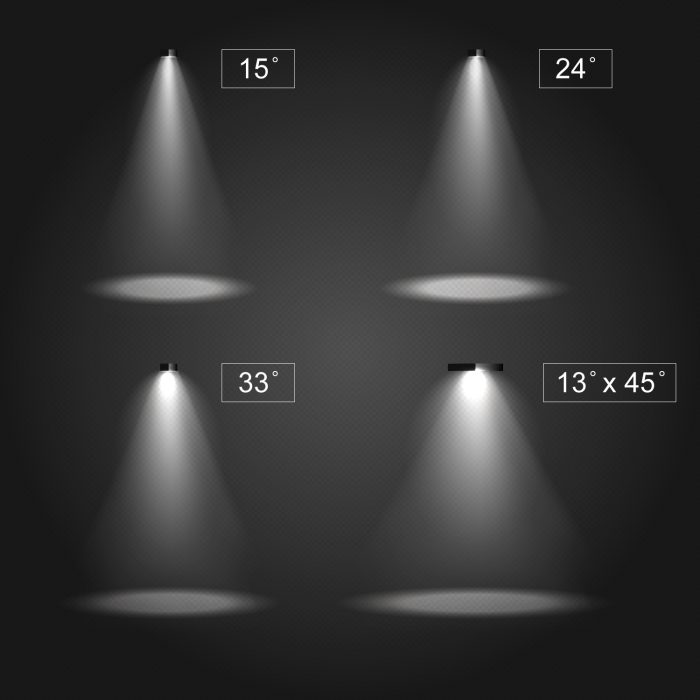

  • Beam Angles: 15°/24°/33°
  • Lifetime: >50,000h L90
  • Warranty: 5 Years
Features and Details
  • Darklight techonogy with minimal design
  • A nearly invisible light by hiding the light source
  • High-quality Lens with outstanding color performance CRI 90+
  • Made of die-cast aluminium in white and black in fine matte finishing
  • Designed to low glare and long lifetime
  • Phase cut dimming, DALI dimming (Fliker Free Driver)
  • Ideal for high-end residentail, retail, hospitality, education and hotels

IES Files Installation instructions Product images Specifications Download all
