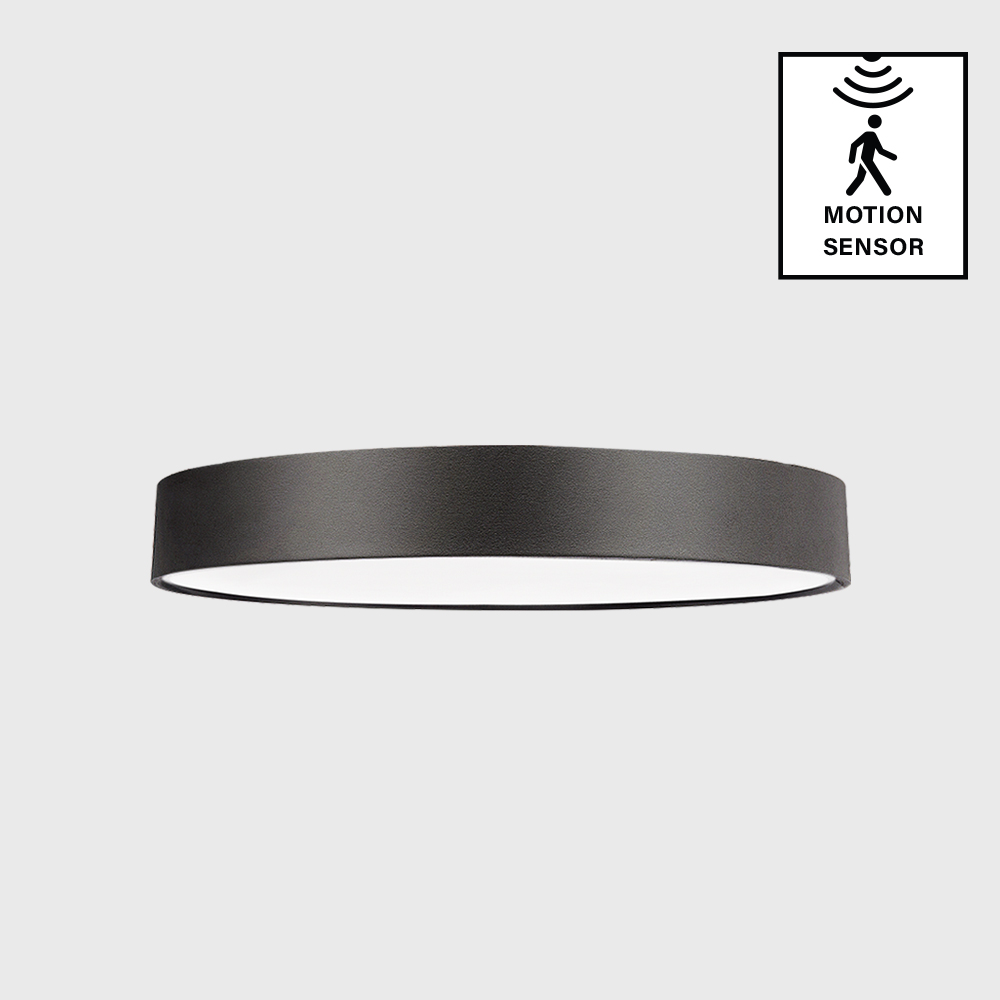

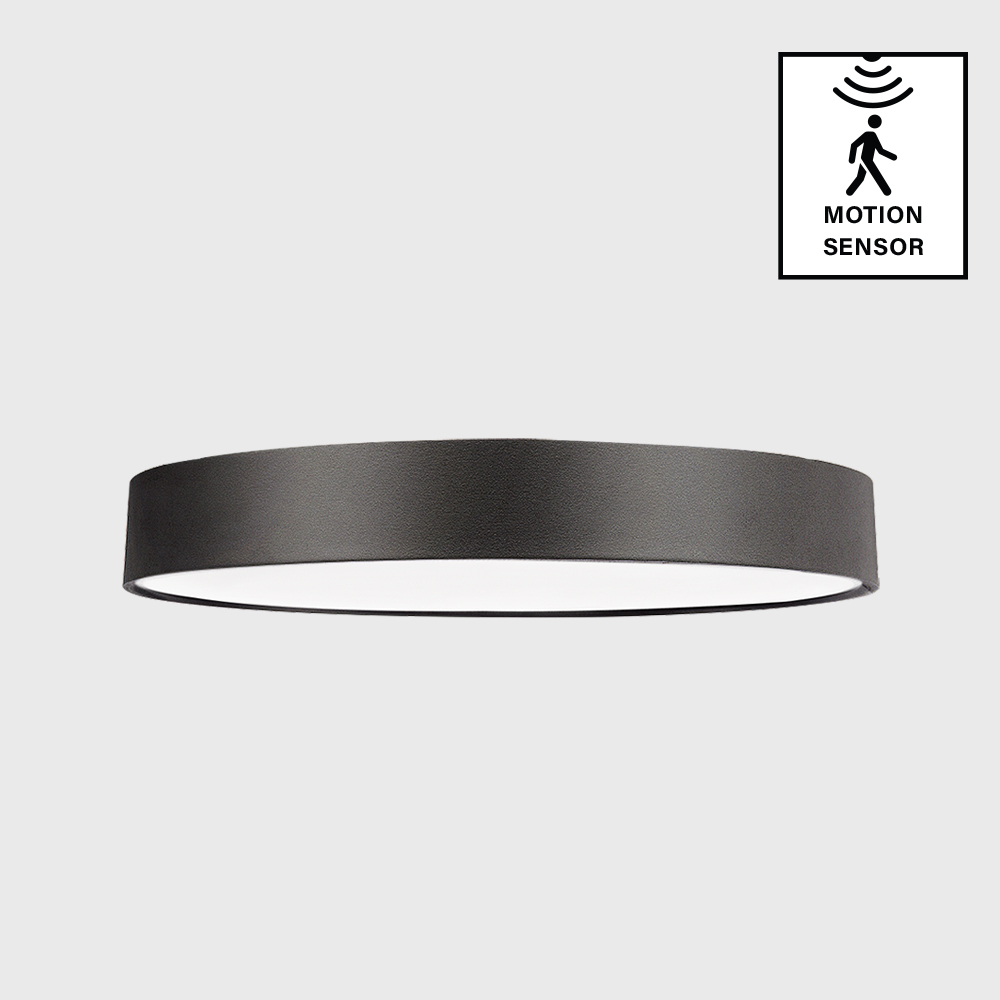

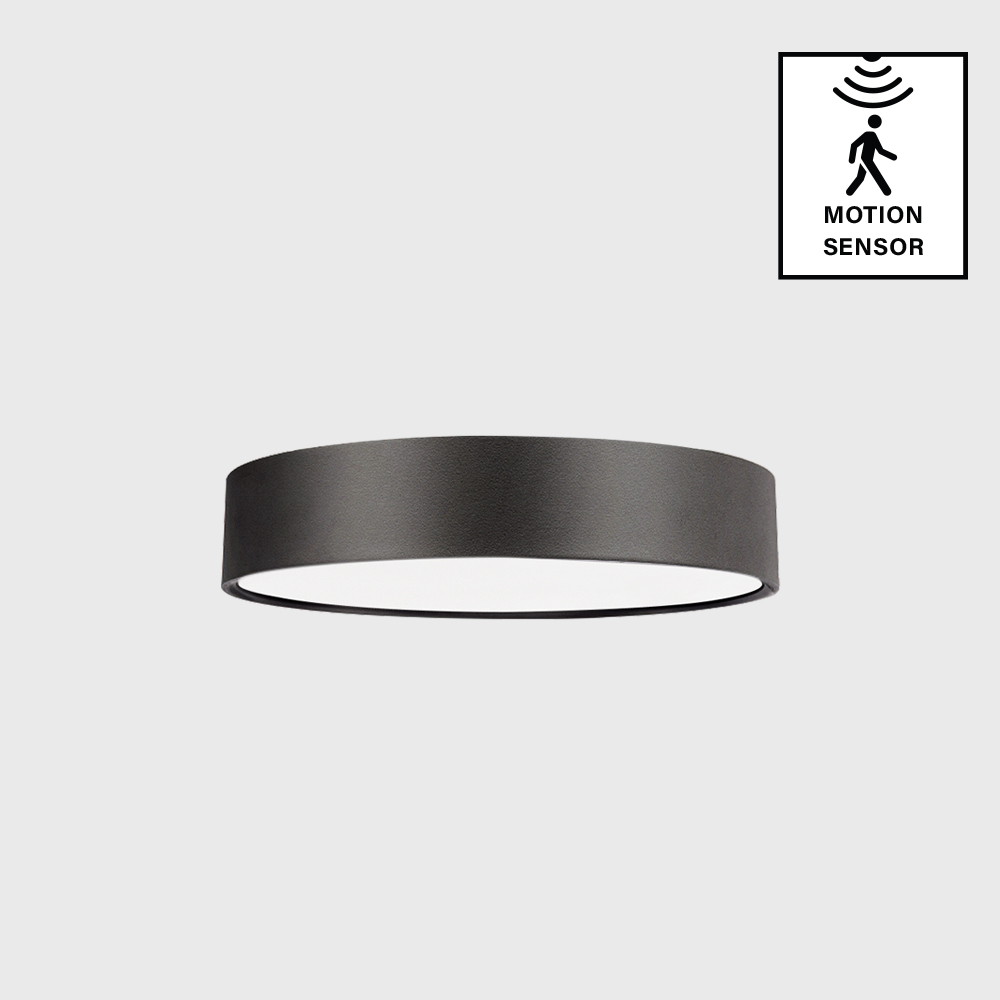

Compo 320/450/600
Sensor
Detection zone Max (D x H): 5m x 5m
Detecting distance: 25% – 100%, adjustable
Light sensibility: 10-100 lux, adjustable
Hold time: 5sec-5min, adjustable
Stand-by Period: Osec – , adjustable
Mounting height: 5m Max.
Detection angle: 150° (Ceiling and wall installation)
Specifications:
- Materials: Aluminium, Opal cover
- Finishes: Black/White
- Compo 320 Lumens Flux : 2400lm 14W / 1800lm 18W
- Compo 450 Lumens Flux : 3100lm 30W / 2300lm 22W
- Compo 600 Lumens Flux : 5500lm 55W / 4000lm 38W
- Efficacy: 100lm/W
- CCT: 3000K/4000K Switch as standard, 6500K on request
- IP Rating: IP20
- CRI: > 90
- SDCM: < 3
- UGR: < 19
- Beam Angle: 120°
- Flicker (PstLM): < 0.7
- Stroboscopic. Effect (SVM): < 0.3
- Lifetime: > 50,000h L80
- Warranty: 5 Years
Features and Details
- Designed by NPK design, the Netherlands
- Can be surface mounted, wall mounted, or suspended
- Direct only or direct – indirect light distribution ( Indirect lighting can be switched on/off button on the luminaire base)
- High efficiency and perfect glare control
- Low – glare UGR<19 thanks to micro-prismatic diffuser
- Limited height design only 69mm for direct light version and 79mm for direct – indirect version
- Ease of installation with no visible screws
- Interchangeable diffusers and battery replacement for easy maintenance
- Flicker free build-in driver
- Phase dimming, Emergency, DALI (DT-6), DALI (DT-6) + Emergency
- The configuration of the detecting function is by setting the DIP switch. Default sensor factory settings: Detecting distance: 100%, Hold time: 1 min, Stand-by Period: 60 min (30%).
Accessories:
- Rod suspended kit 1m as standard
