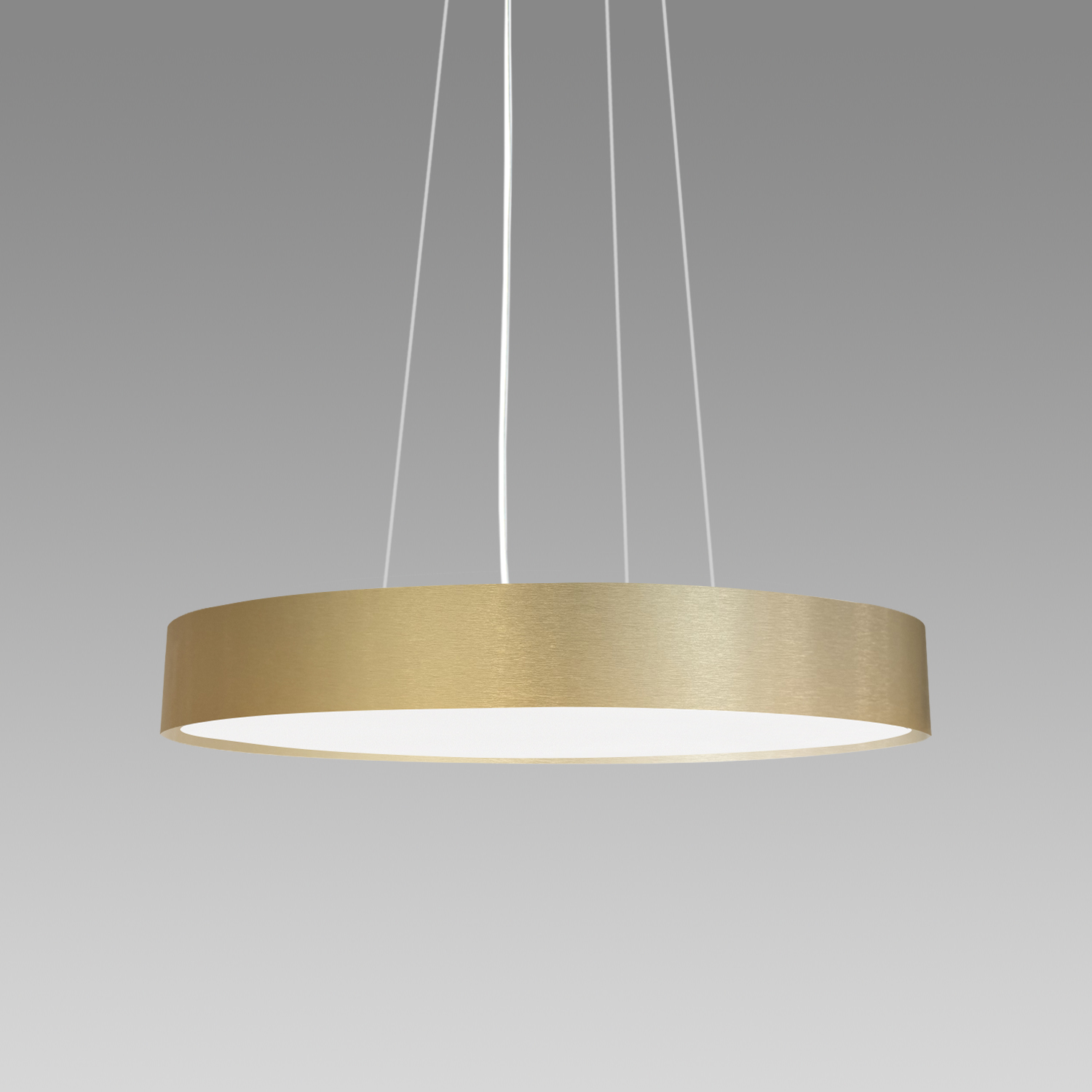

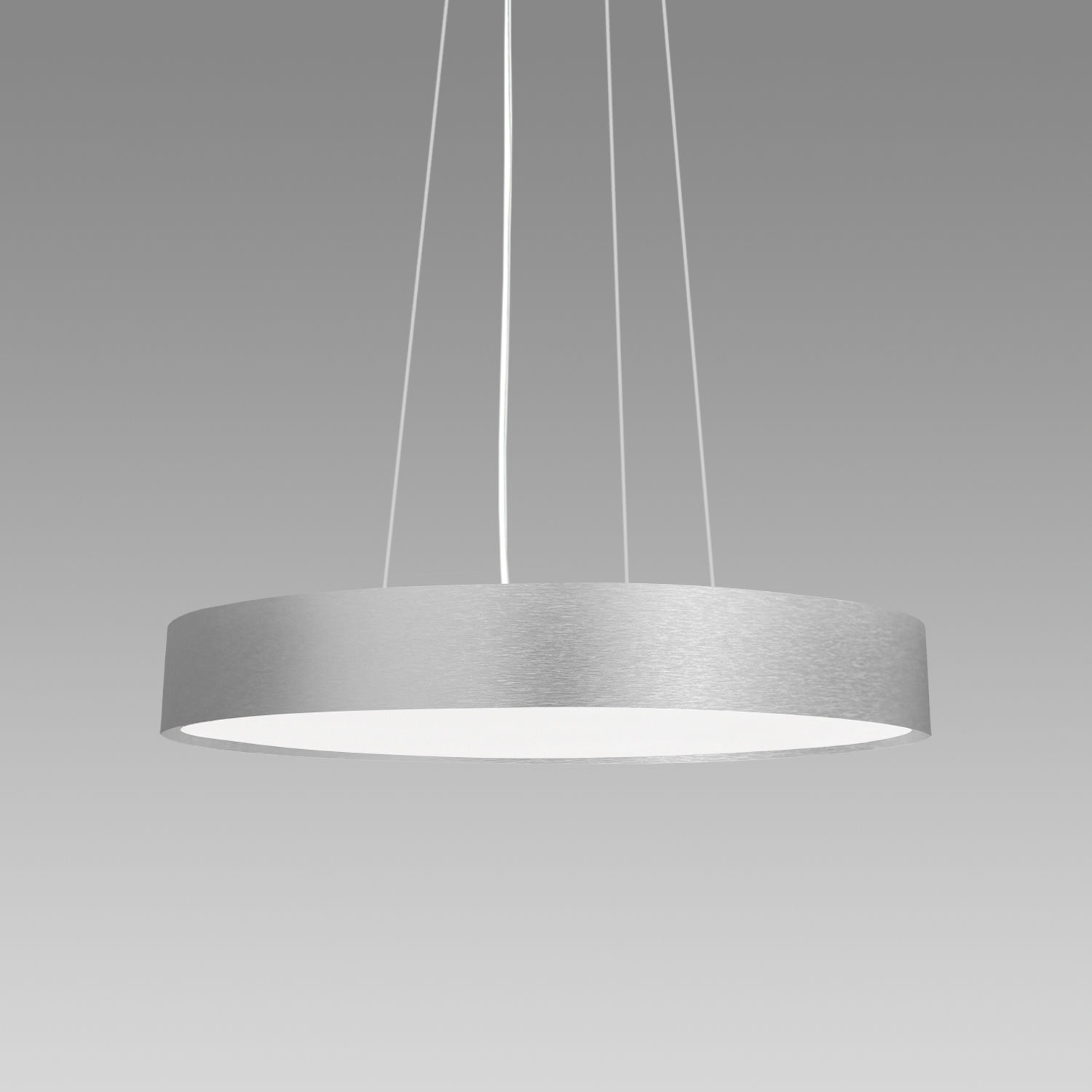

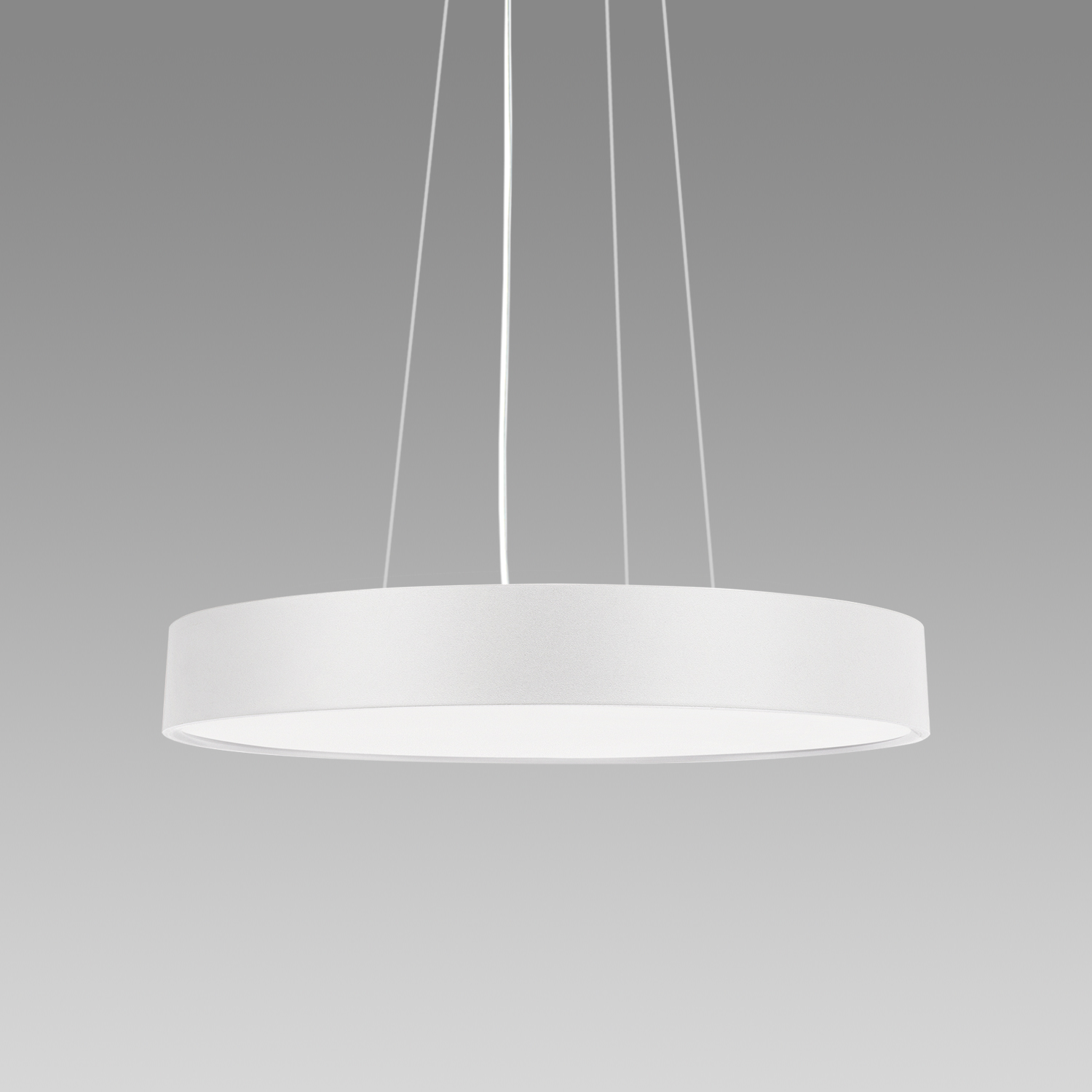

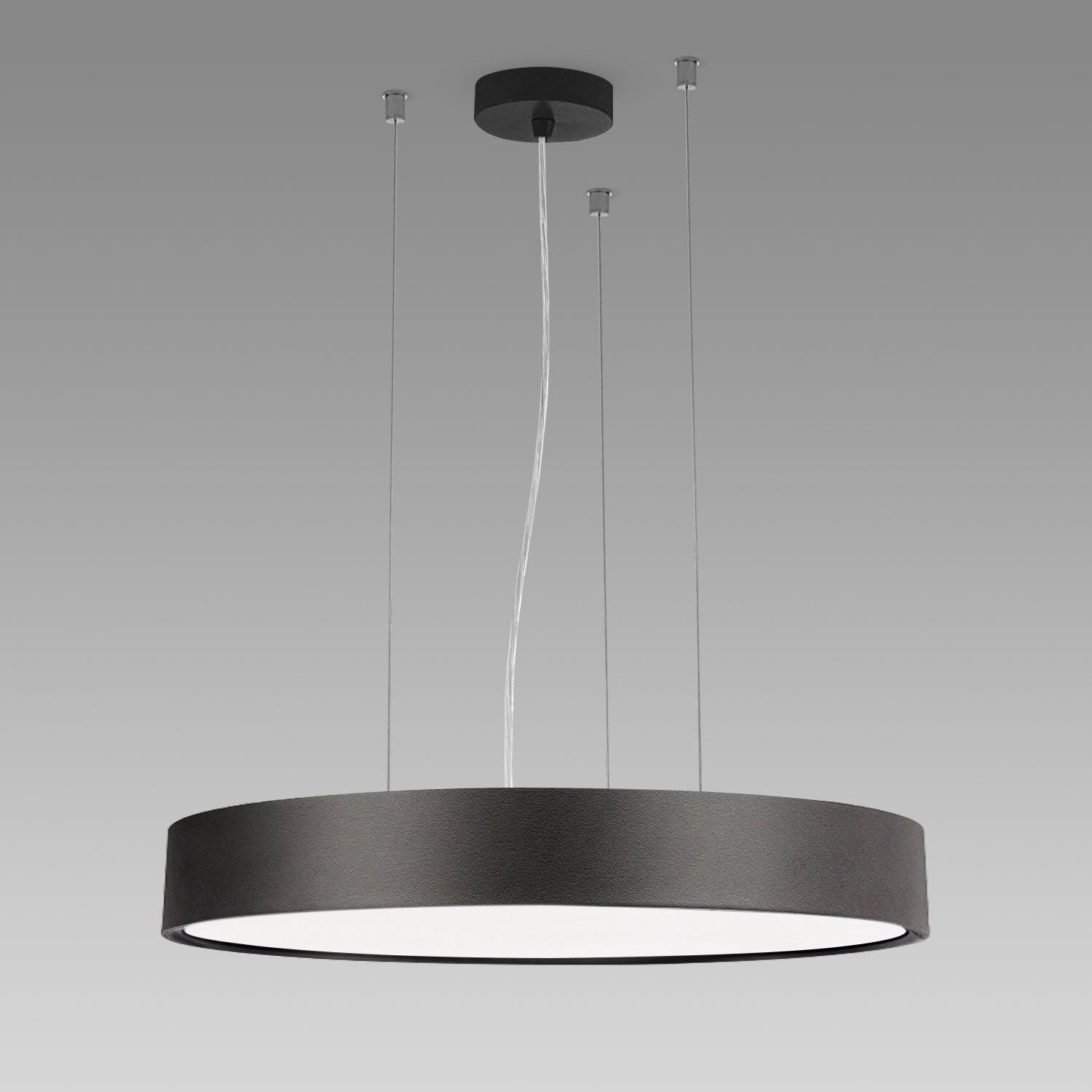

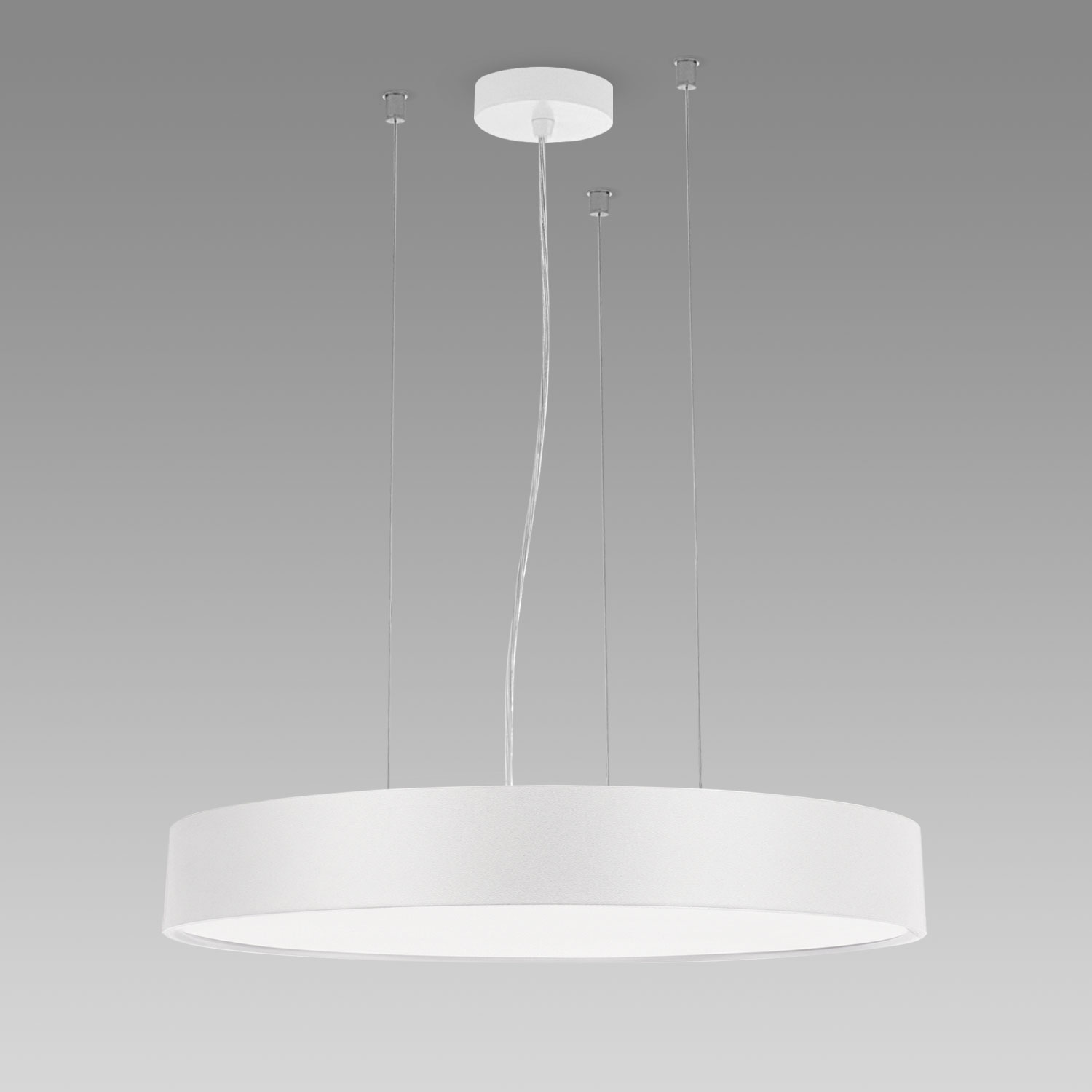

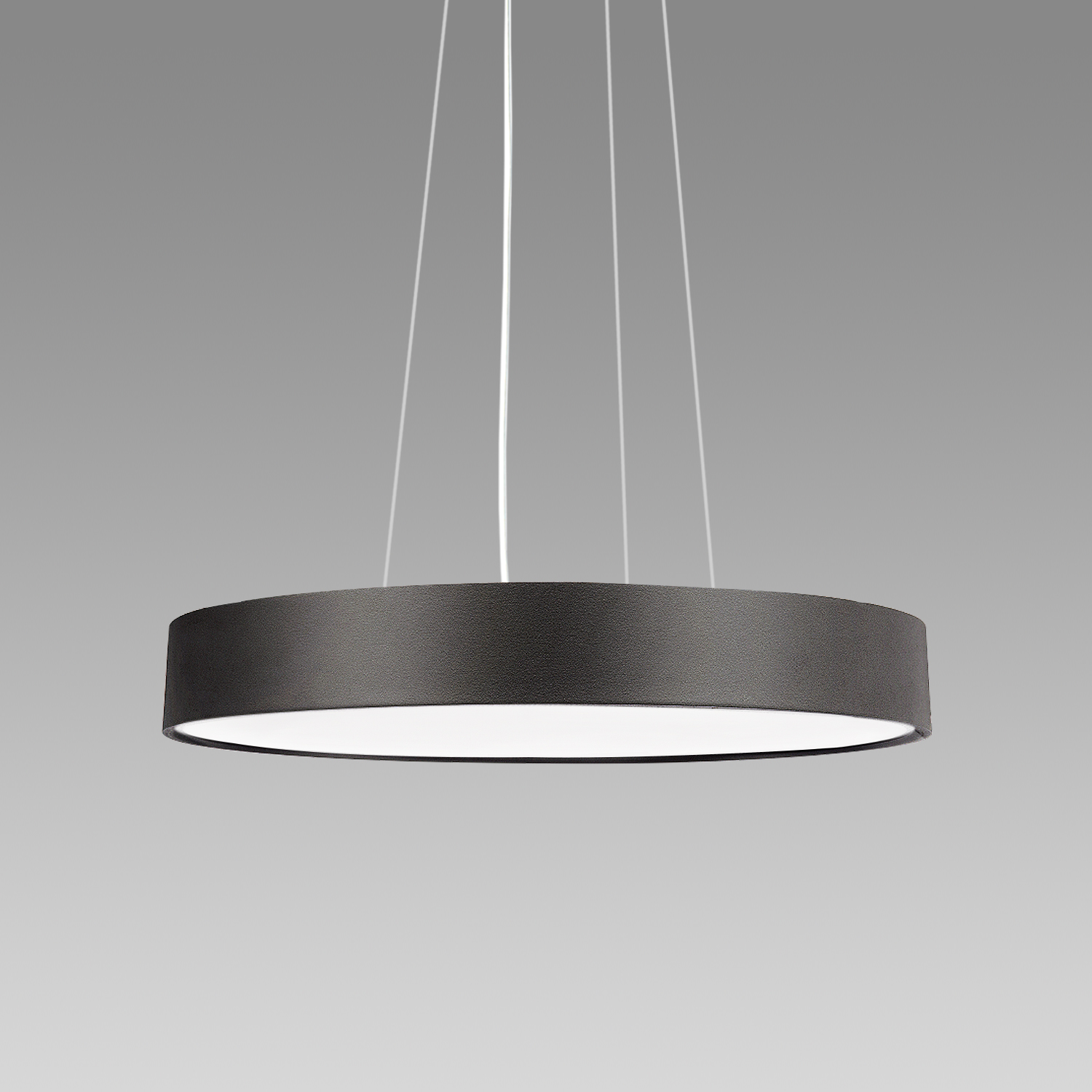

Compo 450 Wire Suspension

Pure architectural light fittings for all applications

Compo series is a very classic cylindrical design in various sizes and mounting options that integrates elegantly into any architecture.

Uniformly illuminated product thanks to its 2 diffusers design. Opal diffuser provides homogeneous general lighting and Micro-prismatic diffuser is ideal for office lighting.

Available in direct only or direct – indirect light distribution options which perfect for office use, education, healthcare, retail, hospitality, and hotel.

npk design, the Netherlands

Specifications:

• Materials: Aluminium, Opal cover
• Finishes: Black/White/Brushed Gold/Brushed Silver
• LED Power: 30W/22W/17W
• Efficacy: 100lm/W
• CCT: 3000K/4000K Switch as standard, 6500K on request
• IP Rating: IP20
• CRI: > 90
• SDCM: < 3
• UGR: < 19
• Beam Angle: 120°
• Flicker (PstLM): < 0.7
• Stroboscopic. Effect (SVM): < 0.3
• Lifetime: > 50,000h L80
• Warranty: 5 Years

Features and Details

• Designed by NPK design, the Netherlands
• Can be surface mounted, wall mounted, or suspended
• Direct only or direct – indirect light distribution ( Indirect lighting can be switched on/off button on the luminaire base)
• High efficiency and perfect glare control
• Low – glare UGR<19 thanks to micro-prismatic diffuser

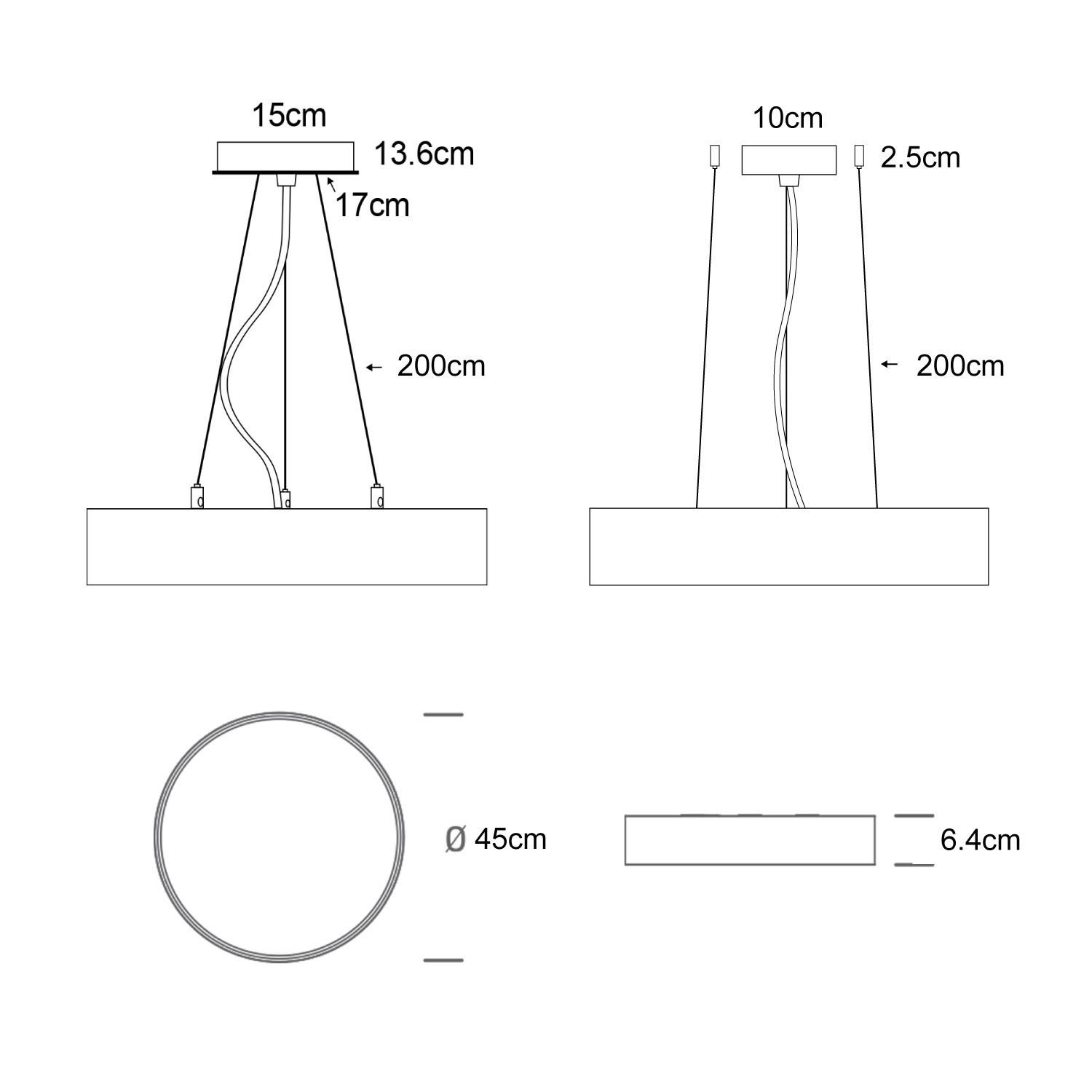

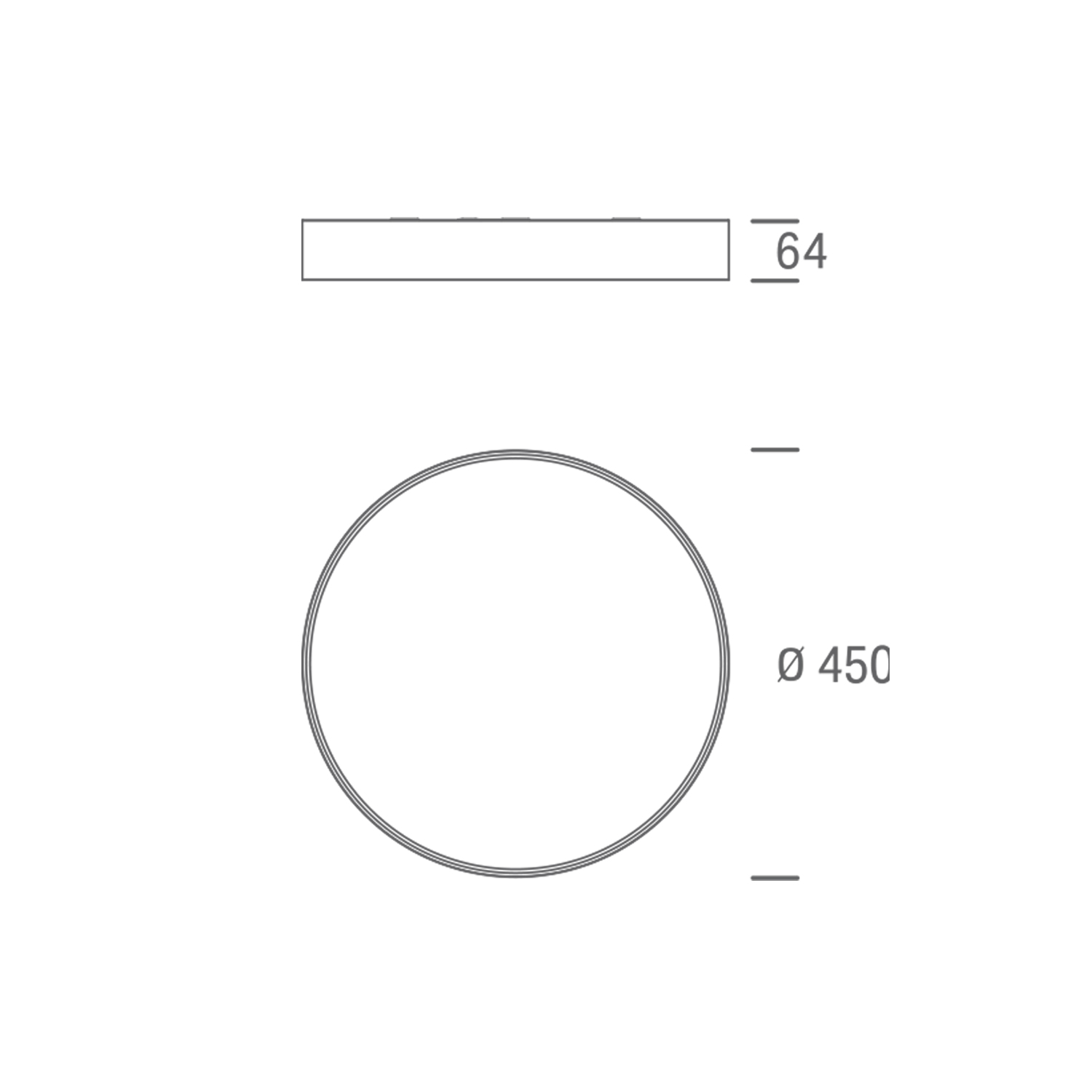

• Limited height design only 69mm for direct light version and 79mm for direct – indirect version
• Ease of installation with no visible screws
• Interchangeable diffusers and battery replacement for easy maintenance
• Flicker free build-in driver
• Phase dimming, Emergency, DALI (DT-6), DALI (DT-6) + Emergency
• Emergency light (90 mins @ 2W)

Accessories:

• Rod suspended kit 1m as standard
