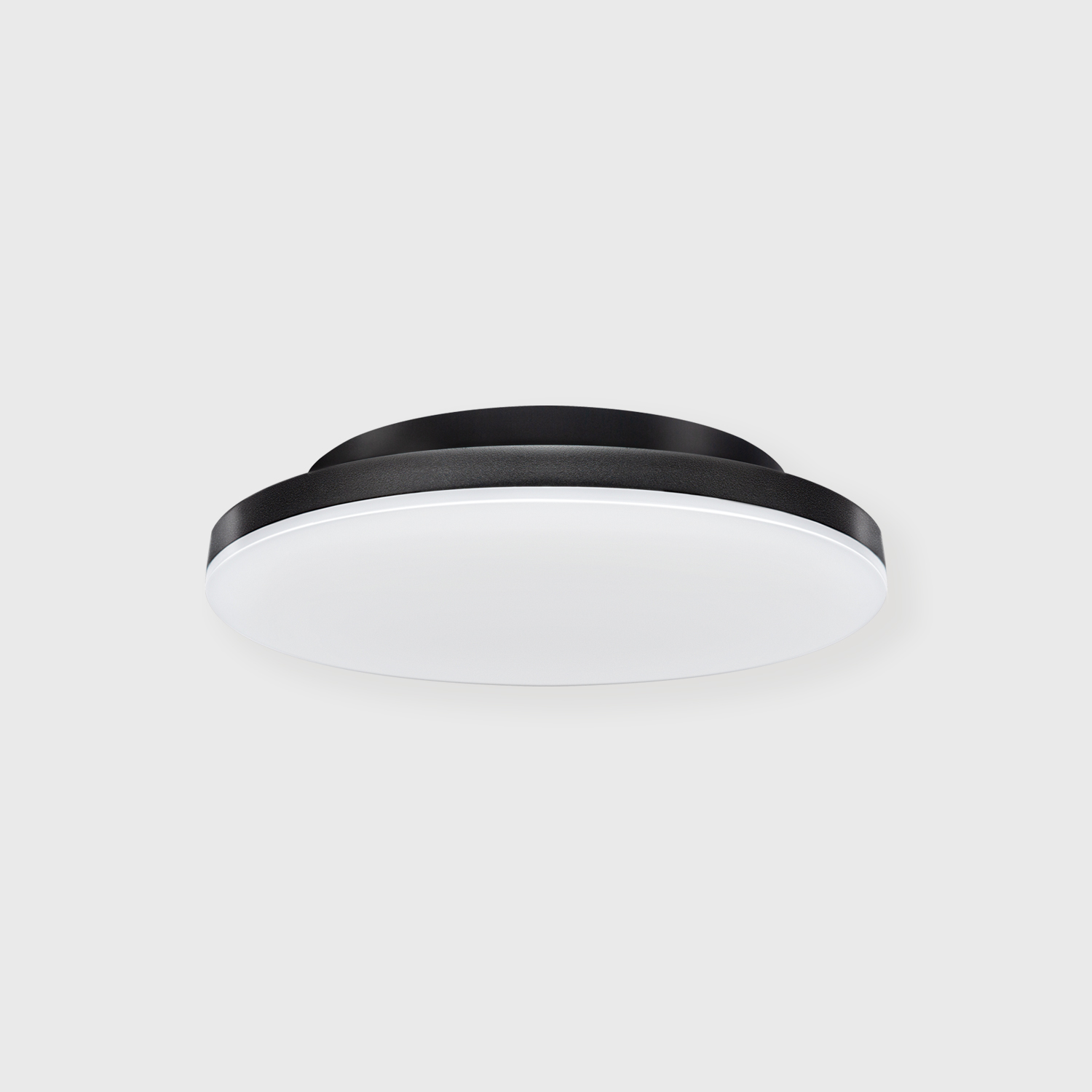

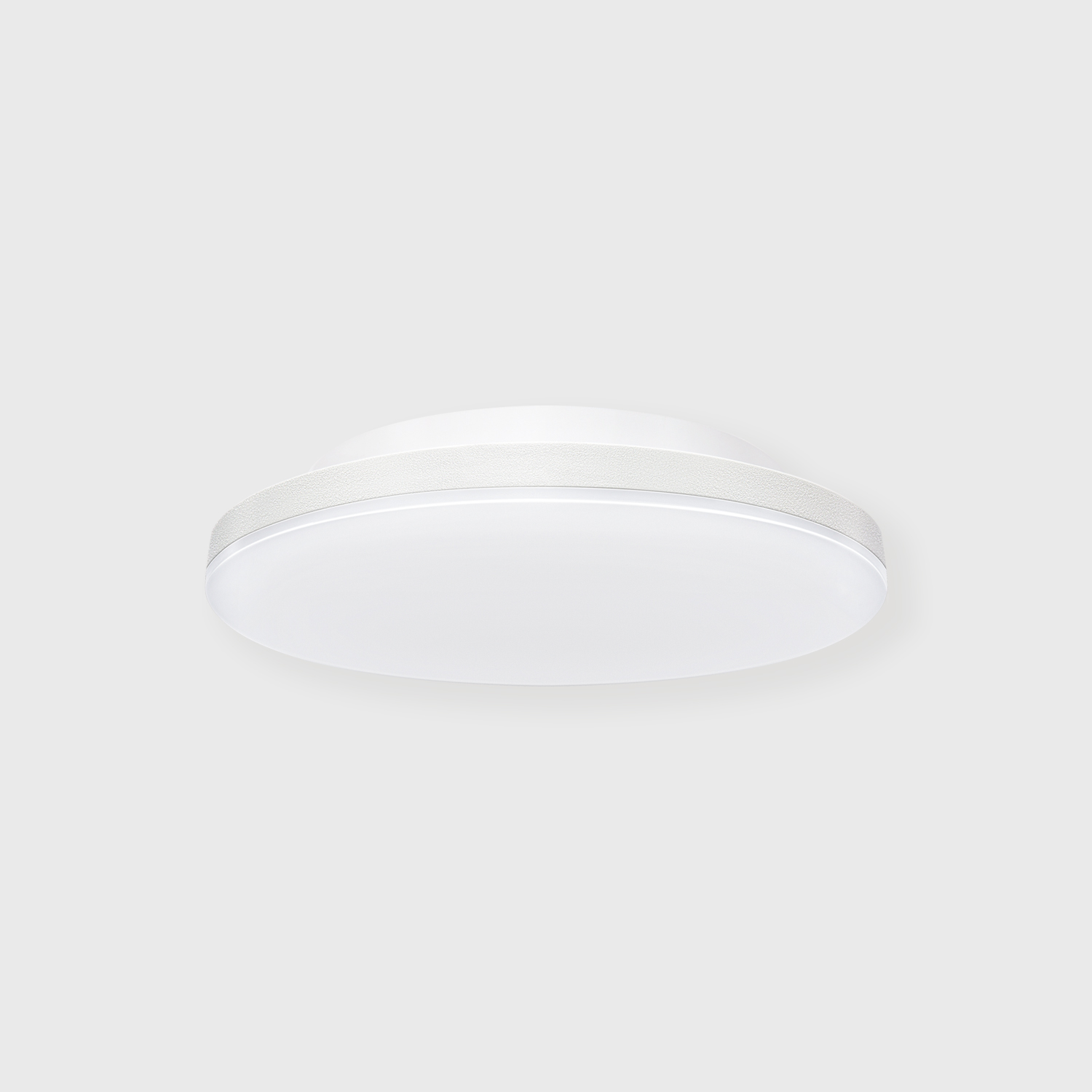

Disc 220

Modern, minimal look thanks to thin LED Strip

Ultra-thin design, special internal reflector and opal diffuser makes Direct and Indirect Light with uniform visuals for any interior projects. Available in 3 options for mounting: for suspended installation, ceiling and wall surface mounted or insert for 3-phase track system.

npk design, the Netherlands

Enquire about this product
Specifications
  • Materials: Aluminium + Polycarbonate
  • Finishes: Black/White
  • LED Power: 15W/10W/8W Switch
  • Lumens: 1500lm/1000lm/800lm
  • Efficacy: 100lm/W
  • CCT: 3000K/4000K Switch
  • IP Rating: IP20
  • CRI: 90
  • SDCM: <3
  • UGR: <23
  • Beam Angles: 120°
  • Lifetime: >50,000h L80
  • Warranty: 5 Years
Features and Details
  • Designed by NPK design Netherlands
  • Can be surface mounted, wall mounted, suspended or on track
  • Minimalist design with an uniform light distribution
  • Push-locking makes it easy installation
  • Flicker free build-in driver
  • Triac Dimming (range 1%-100%)
  • DALI2.0 Dimming (DT6)
  • Motion detection (Corridor Function)
  • Ideal for both residential and commercial applications
Downloads
IES Files Installation instructions Product images Specifications Download all
Configure
