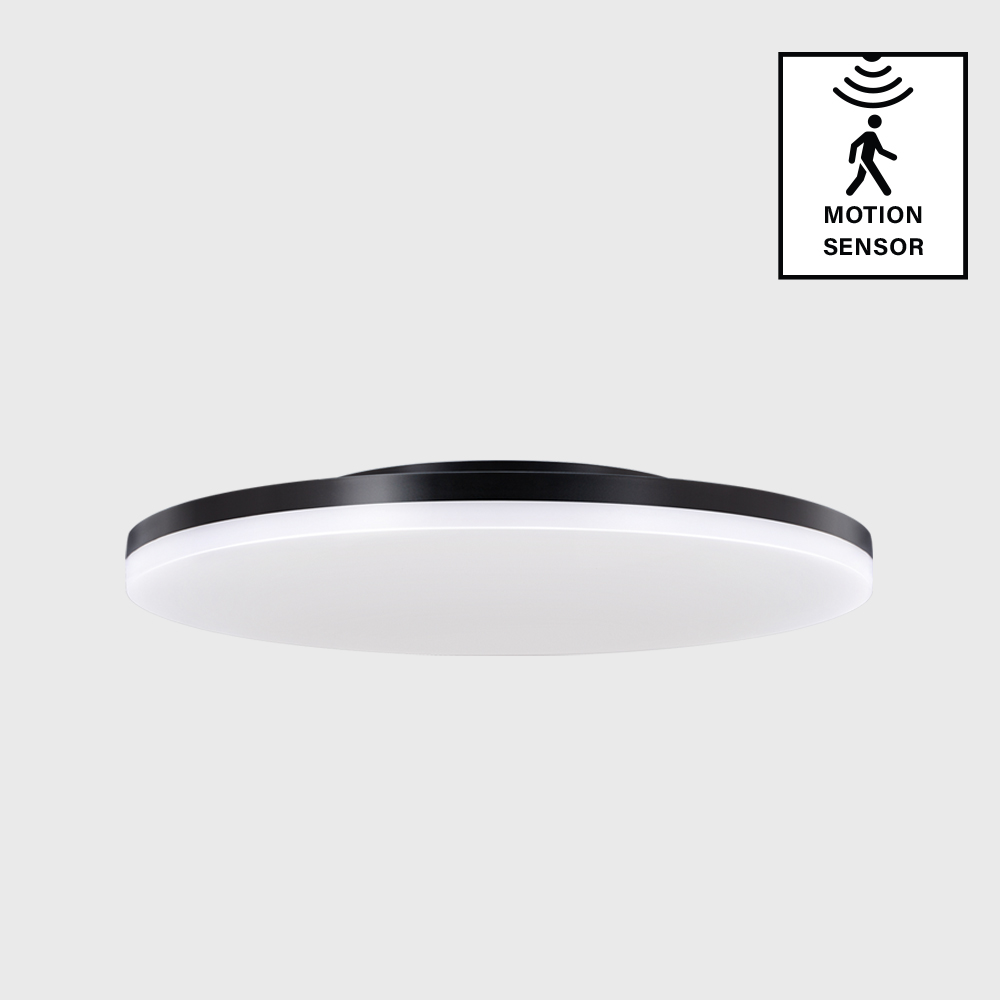

Disc 270/300
Sensor
Detection zone Max (D x H): 5m x 5m
Detecting distance: 25% – 100%, adjustable
Light sensibility: 10-100 lux, adjustable
Hold time: 5sec-5min, adjustable
Stand-by Period: Osec – , adjustable
Mounting height: 5m Max.
Detection angle: 150° (Ceiling and wall installation)
Specifications
- Materials: Aluminium + Polycarbonate
- Finishes: Black/White

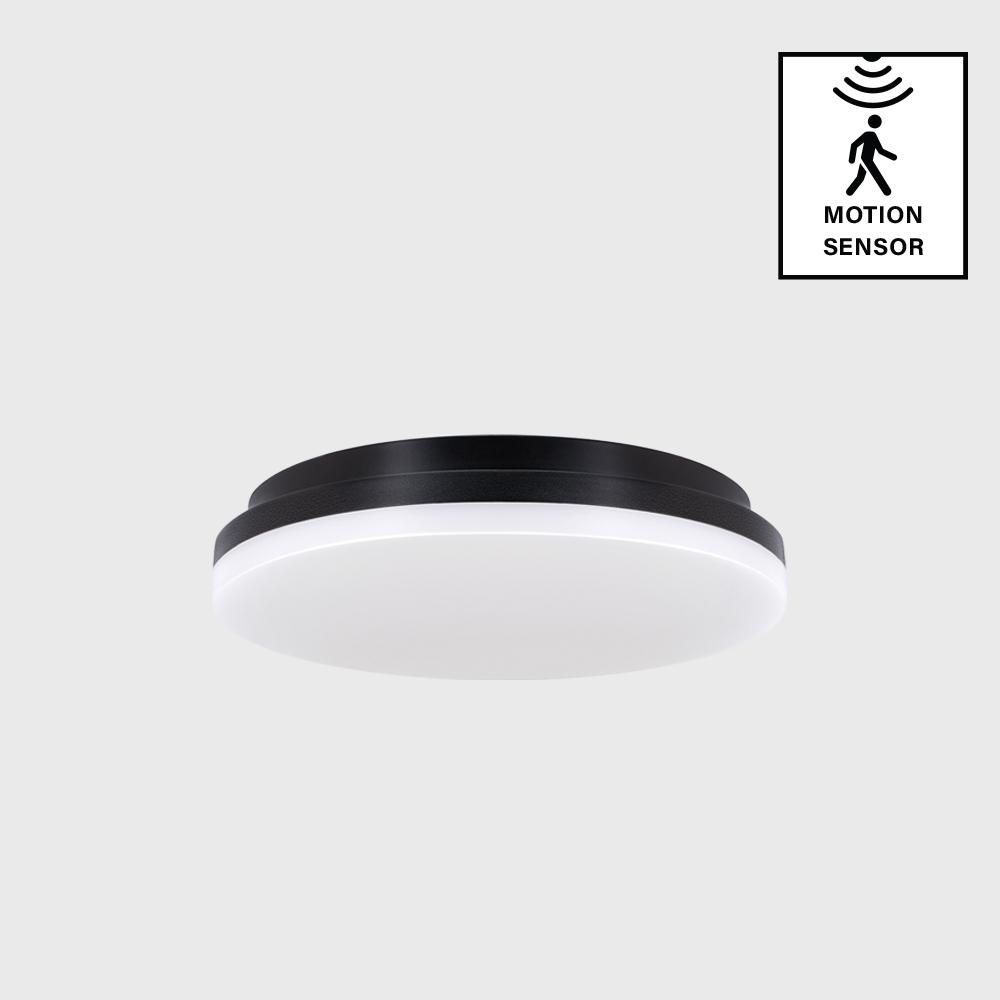

- Disc 220 Lumens Flux: 1500lm 15W/1000lm 10W/800lm 8W
- Disc 300 Lumens Flux: 2400lm 24W/1800lm 18W/1000lm 10W
- Efficacy: 100lm/W
- CCT: 3000K/4000K Switch
- IP Rating: IP20
- CRI: 90
- SDCM: <5
- UGR: <22
- Beam Angles: 120°
- Lifetime: >50,000h L80
- Warranty: 5 Years
Features and Details
- Designed by NPK design Netherlands
- Direct and indirect Track light
- Minimalist design with an uniform light distribution
- Push-locking makes it ease installation
- Can be surface mounted, wall mounted, suspended or on track
- Flicker free build-in driver
- Triac Dimming (range 1%-100%)
- DALI2.0 Dimming (DT6)
- Motion detection (Corridor Function)
- Emergency light (90 mins @ 2W)
- Ideal for both residentail and commerical applications

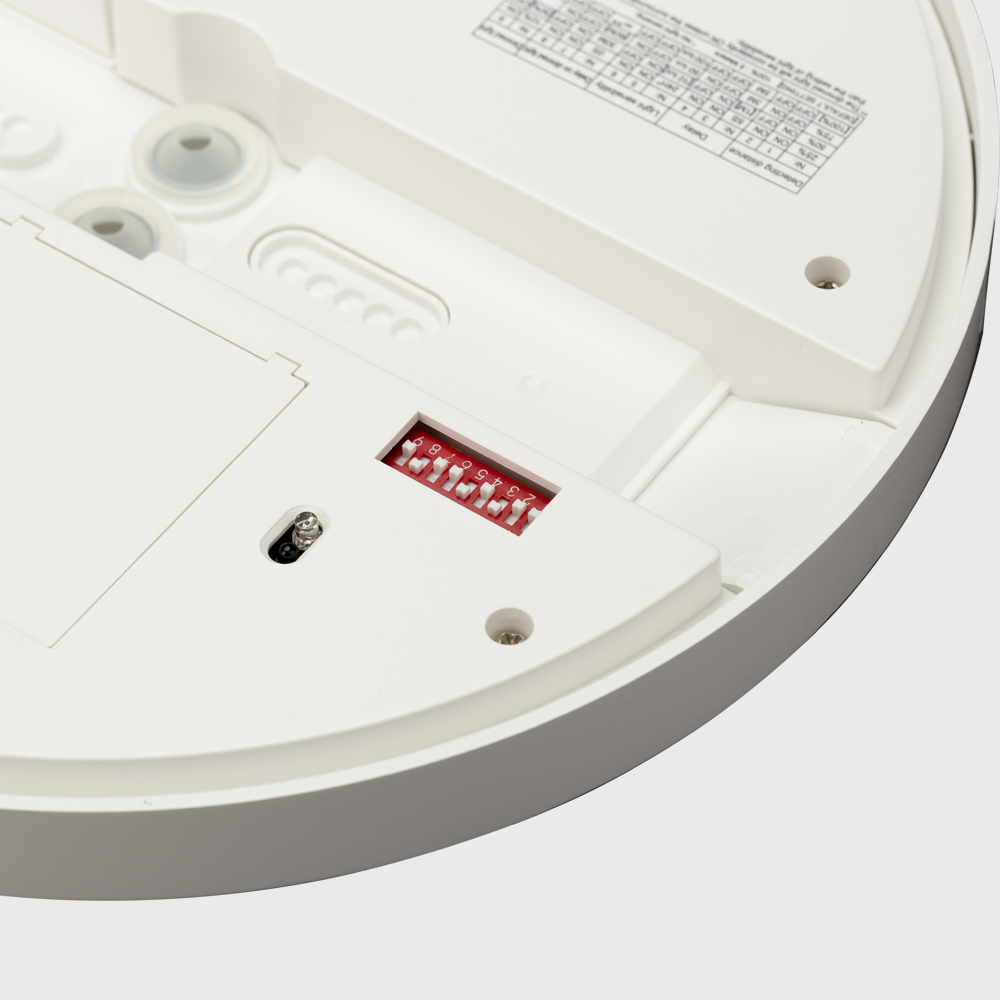

- The configuration of the detecting function is by setting the DIP switch. Default sensor factory settings: Detecting distance: 100%, Hold time: 1 min, Stand-by Period: 60 min (30%).
Accessories
- Track adapter
- Suspended kit
