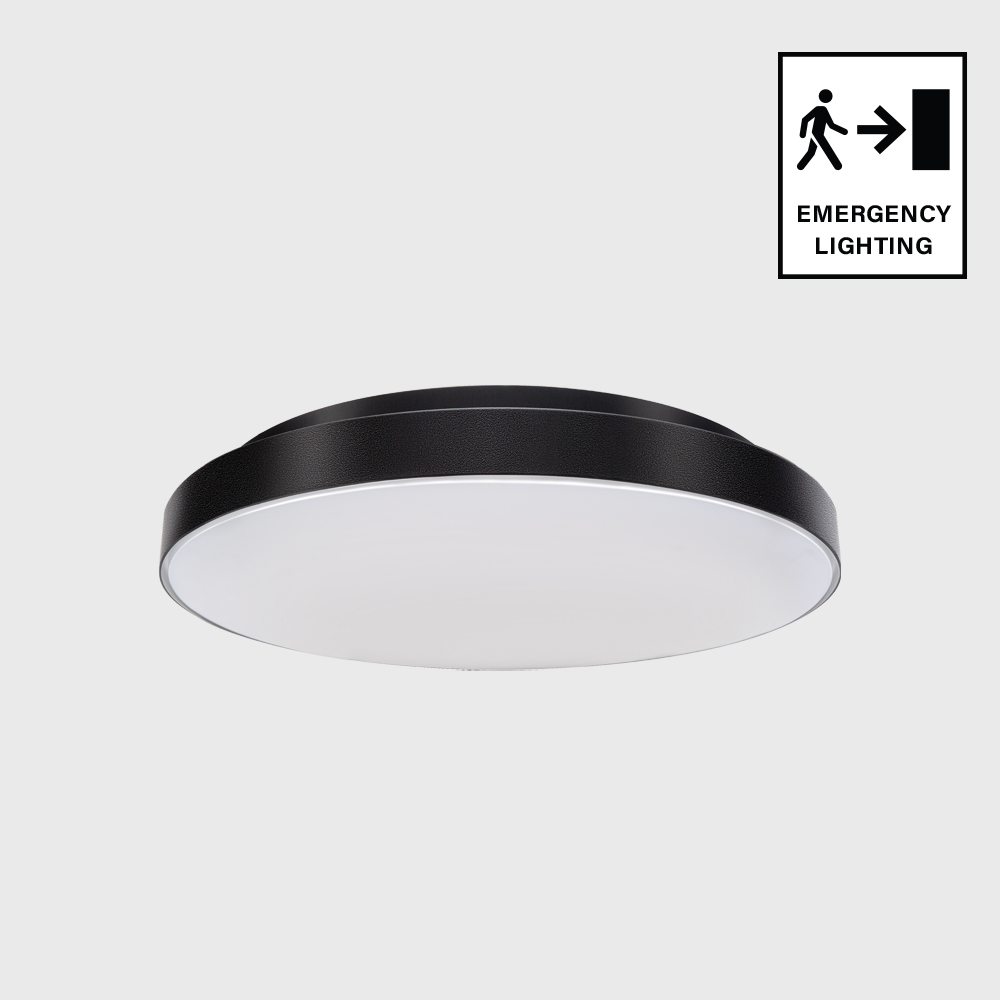

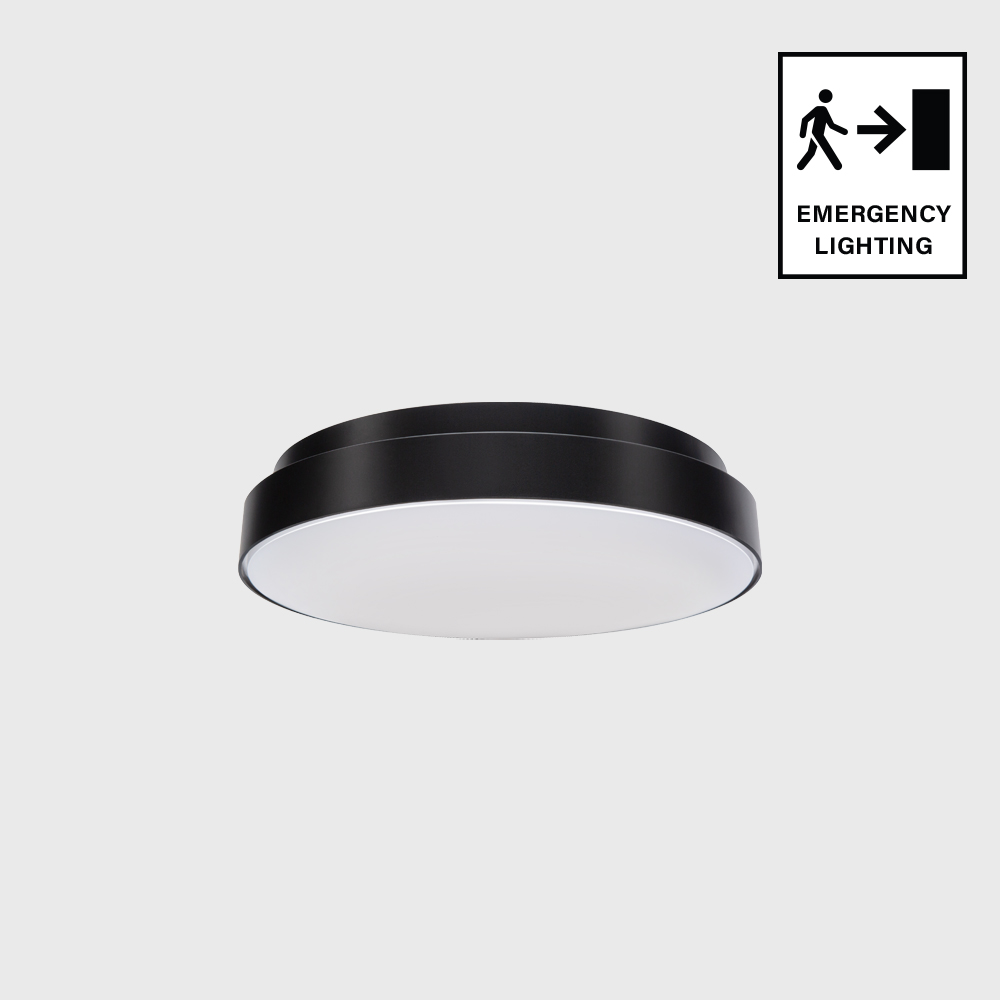

Pura Trim 270/350

Emergency

Compliance AS/NZS 2293.3.2018 – Emergency lighting and Exit signs for buildings

Part 2: Emergency luminaires and exit signs.

Interior & Exterior Surface mounted application (please note: suitable for covered Exterior applications only e.g Stairwells and entranceways.

90mins Emergency time, 6 hous recharge time, 2W/300lm light output, Lithium battery.

The luminaire is equipped with a stand-alone emergency power supply and manual/automatic inspecting function (Monthly ad Yearly)

Enquire about this product
Specifications
  • Materials: Polycarbonate
  • Finishes: Black/White/Silver
  • Lumens Output: 300lm
  • CCT: 3000K/4000K Switch
  • IP Rating: IP54
  • CRI: 90
  • SDCM: <3
  • UGR: <23
  • Beam Angles: 120°
  • Lifetime: >50,000h L80
  • Battery Warranty: 2 Years (can be replaceable)
  • Emergency Time: 90 mins standard or 180 mins on request
  • Recharge Time: 6 Hours
  • EM LED Power: 2w
  • Battery Type: Lithium (HFC1450-35 9.6V.4.8wh 500mAh)
Features and Details
  • Designed by npk design, Netherlands
  • Minimalist design
  • Push-locking makes it ease installation
  • Flicker free build -in driver
  • Also available in DALI DT6 + Emergency
  • Ideal for both residential and commercial applications
