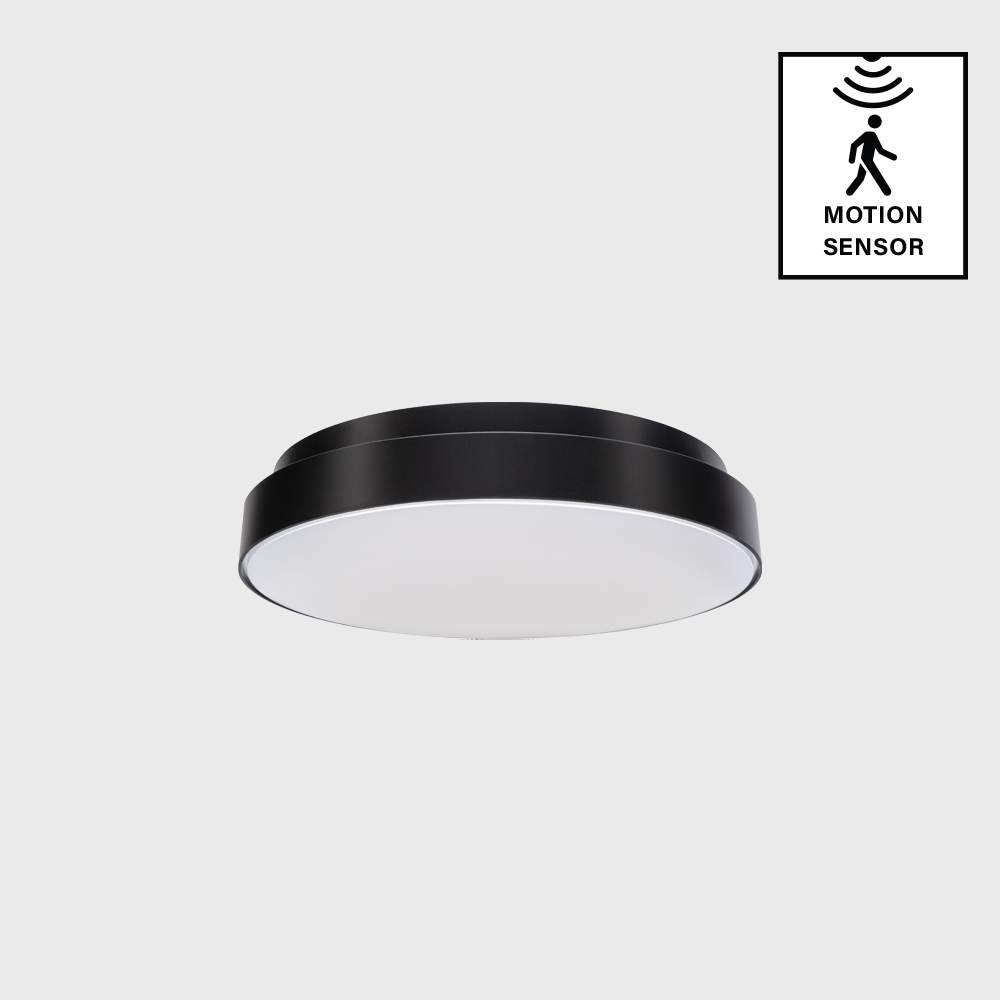

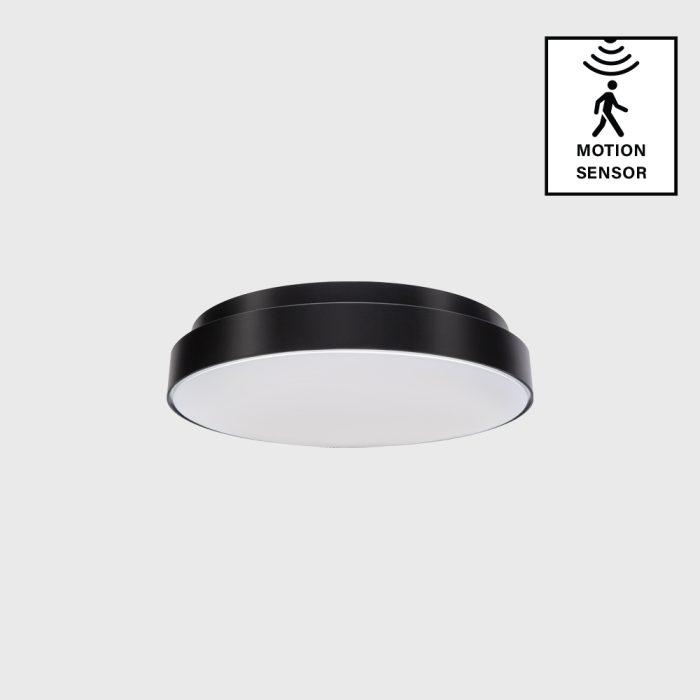

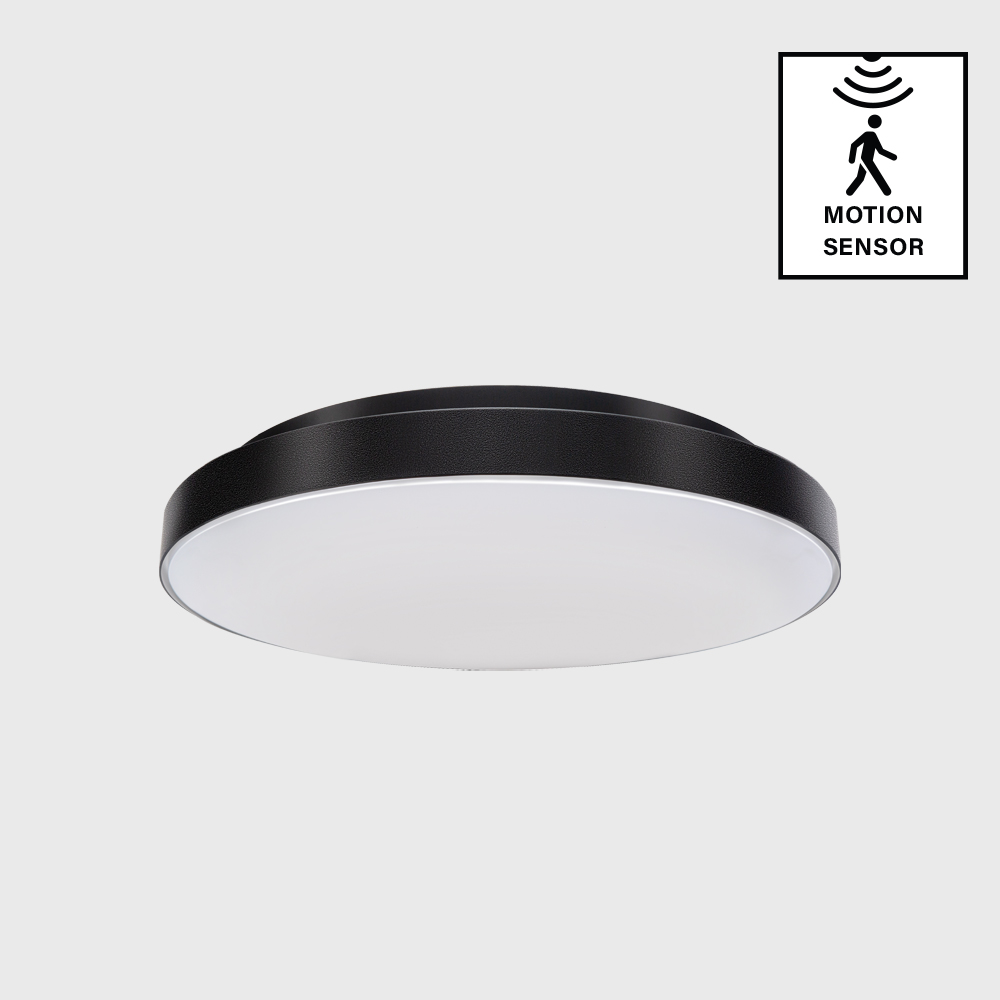

Pura Trim 270/350

Sensor

Detection zone Max (D x H): 5m x 5m

Detecting distance: 25% – 100%, adjustable

Light sensibility: 10-100 lux, adjustable

Hold time: 5sec-5min, adjustable

Stand-by Period: Osec – , adjustable

Mounting height: 5m Max.

Detection angle: 150° (Ceiling and wall installation)

Specifications

• Materials: Polycarbonate
• Finishes: Black/White/Silver
• 270 Lumens Flux: 2400lm 24W/1800lm 18W/1000lm 10W
• 350 Lumens Flux: 3200lm 32W/2400lm 24W
• Efficacy: 100lm/W
• CCT: 3000K/4000K Switch
• IP Rating: IP54
• CRI: 90
• SDCM: <3
• UGR: <23
• Beam Angles: 120°
• Lifetime: >50,000h L80
• Warranty: 5 Years

Features and Details

• Designed by NPK design Netherlands
• Contemporary and durable design
• Push-locking makes it ease installation
• Can be surface mounted, wall mounted, suspended or on track
• Flicker free build-in driver
• Triac Dimming (range 1%-100%)
• DALI Dimming (DT6)
• Motion detection (Corridor Function)(Corridor Function integrated with Emergency pack)(Master-Slave Function on/off only)
• Emergency light (60 mins @ 3W)
• Ideal for both residentail and commerical applications
• The configuration of the detecting function is by setting the DIP switch. Default sensor factory settings: Detecting distance: 100%, Hold time: 1 min, Stand-by Period: 60 min (30%).

Accessories

• Pendant kit (1.5m)
• Recessed kit
• Track adapter
