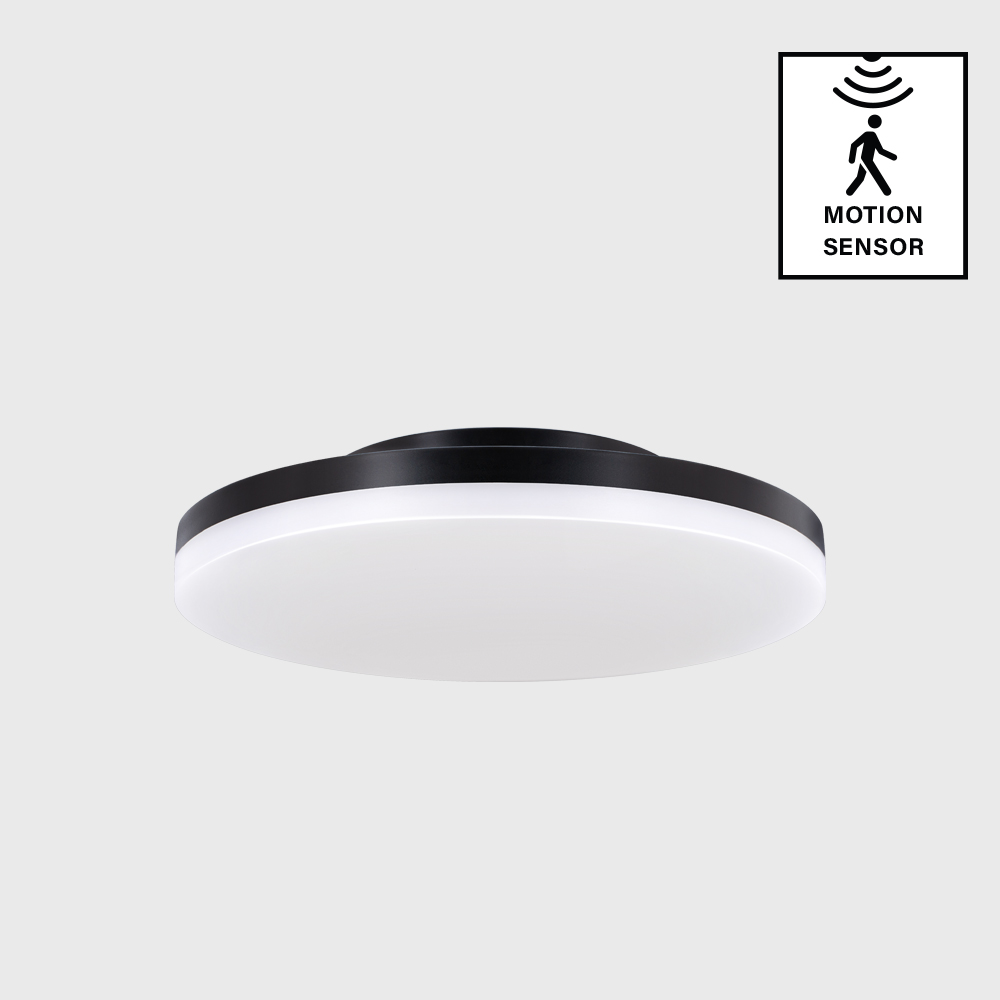

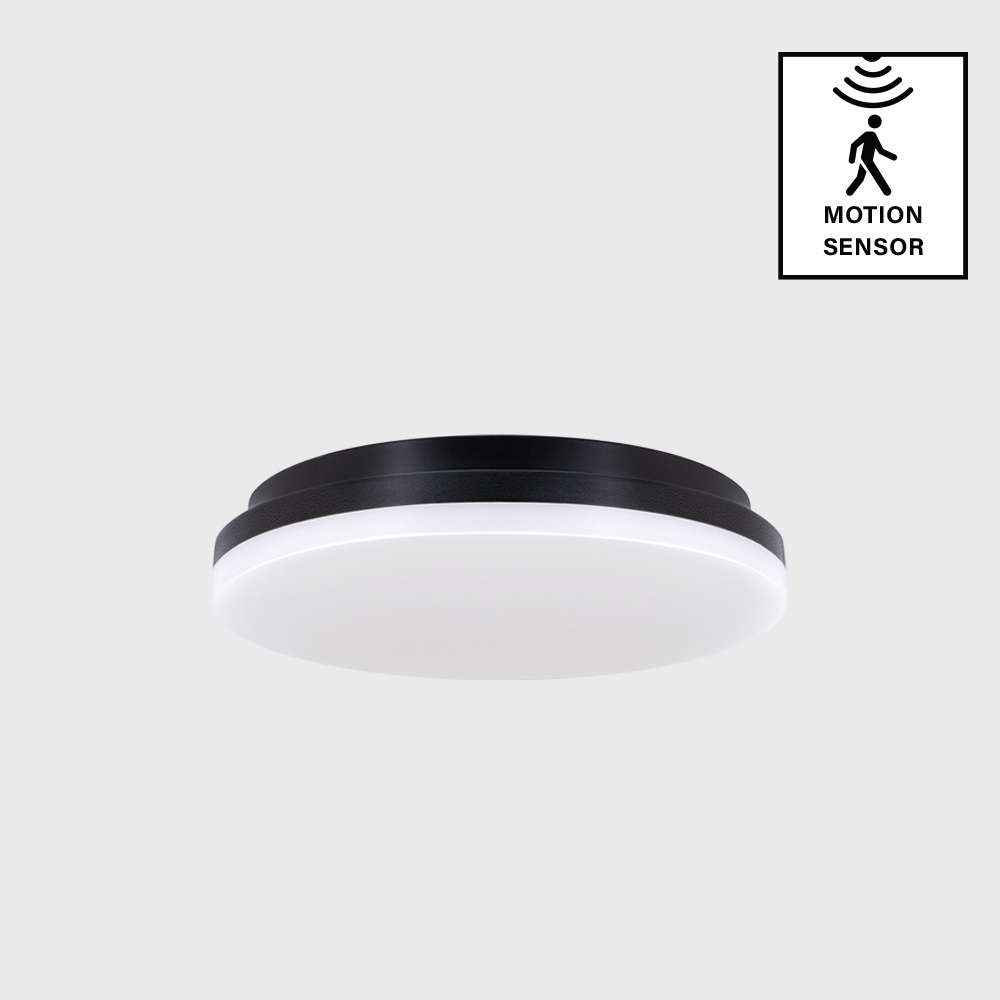

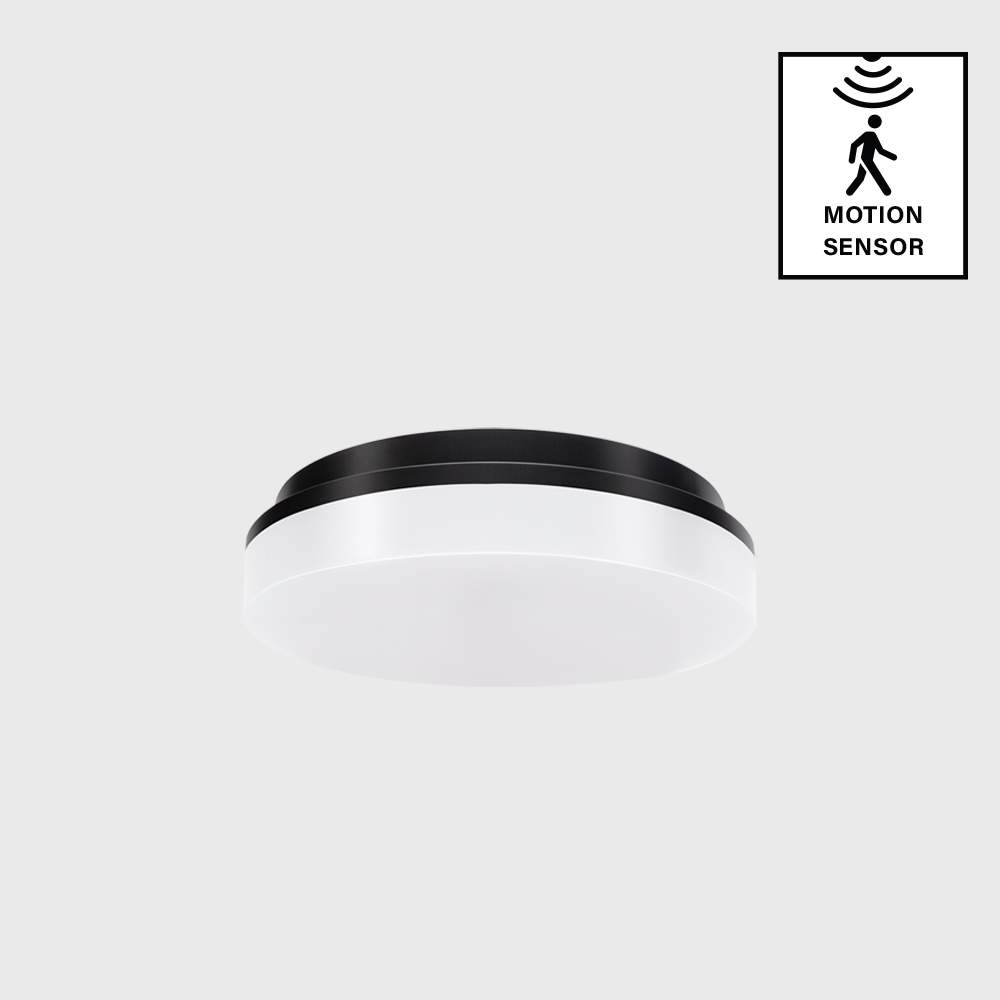

Slice Circle 220/270/400
Sensor
Detection zone Max (D x H): 5m x 5m
Detecting distance: 25% – 100%, adjustable
Light sensibility: 10-100 lux, adjustable
Hold time: 5sec-5min, adjustable
Stand-by Period: Osec – , adjustable
Mounting height: 5m Max.
Detection angle: 150° (Ceiling and wall installation)
Specifications
- Materials: Polycarbonate
- 220 Lumes Flux: 1500lm 15W / 1000lm 10W
- 270 Lumes Flux: 2400lm 24W / 1800lm 18W / 1000lm 10w
- 400 Lumes Flux: 3200lm 32W / 2400lm 24W
- Finishes: Black/White/Silver
- Efficacy: 100lm/W
- CCT: 3000K/4000K Switch
- IP Rating: IP54
- CRI: 90
- SDCM: <3
- UGR: <23
- Beam Angles: 120°
- Lifetime: >50,000h L80
- Warranty: 5 Years
Features and Details
- Designed by NPK design Netherlands
- Minimalist design with an uniform light distribution
- Push-locking makes it ease installation
- Can be surface mounted, wall mounted
- Flicker free build-in driver
- Triac Dimming (range 1%-100%)
- Ideal for both residentail and commerical applications
- The configuration of the detecting function is by setting the DIP switch. Default sensor factory settings: Detecting distance: 100%, Hold time: 1 min, Stand-by Period: 60 min (30%).
