Surface/Suspended Tracks

Track series

The LV is 48V magnetic track light system, designed for professional lighting of commercial and residential spaces. This series comprises of spotlight, diffused or optic darklight, lightpad, wallwasher and pendant. Perfect for the retail, hospitality, office and high-end residential.

Enquire about this product
Specifications
  • Materials: aluminium shell with powder-coated finishings
  • Finishes: Black/White
  • Warranty: 5 Years
Features and Details
  • 48V low voltage track system designed for surface-mounted and suspended applications.

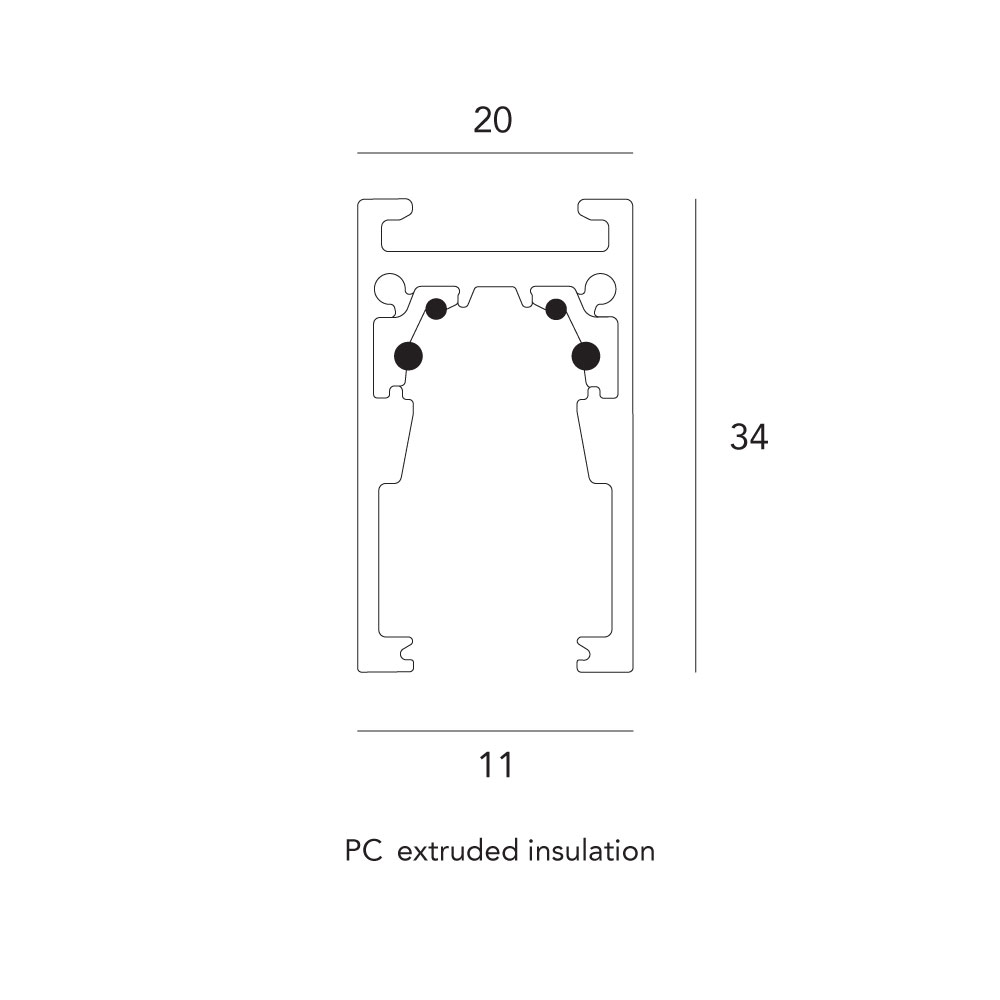

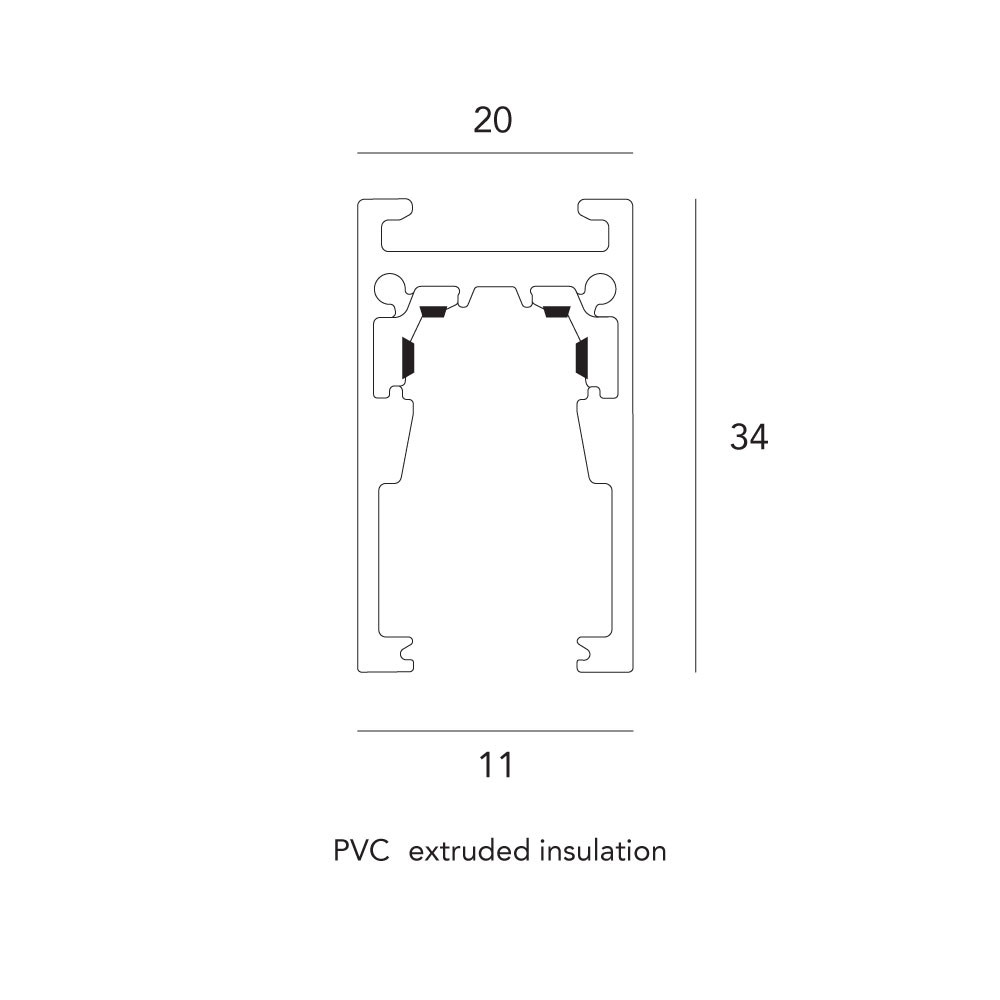

  • PC/PVC extruded insulation with 4 copper conductors(two additional conductors intended to manage a general data signal like DALI).
  • Extruded aluminium shell with powder-coated finishings.
  • Special direct and angle joints(ceiling-ceiling/ceiling-wall) are available in order to create continual rows.
  • A closure sheath is available to be positioned flush with the opening of the track.
  • Suspension kits are available.
  • The linear extruded cover to make the coppers concealed.
  • Complete power supply unit system to be ordered separately.
Downloads
IES Files Installation instructions Product images Specifications Download all
