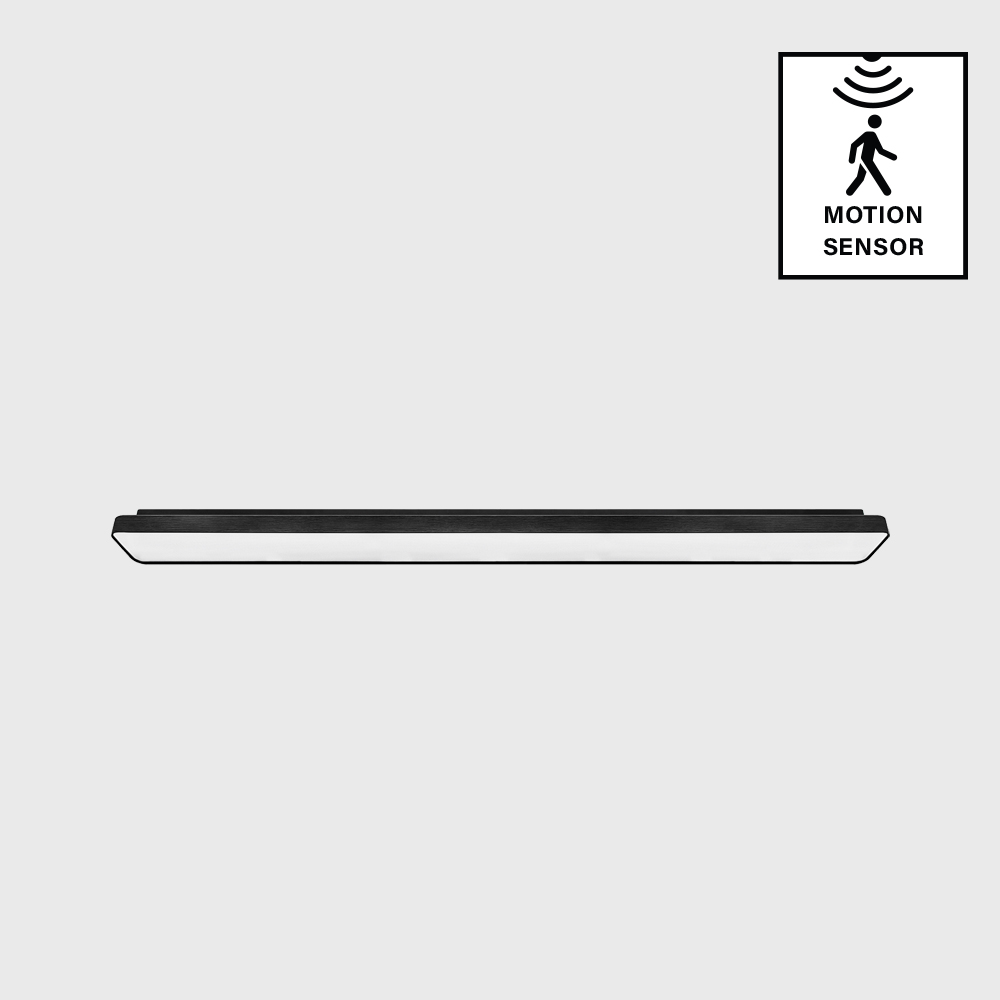

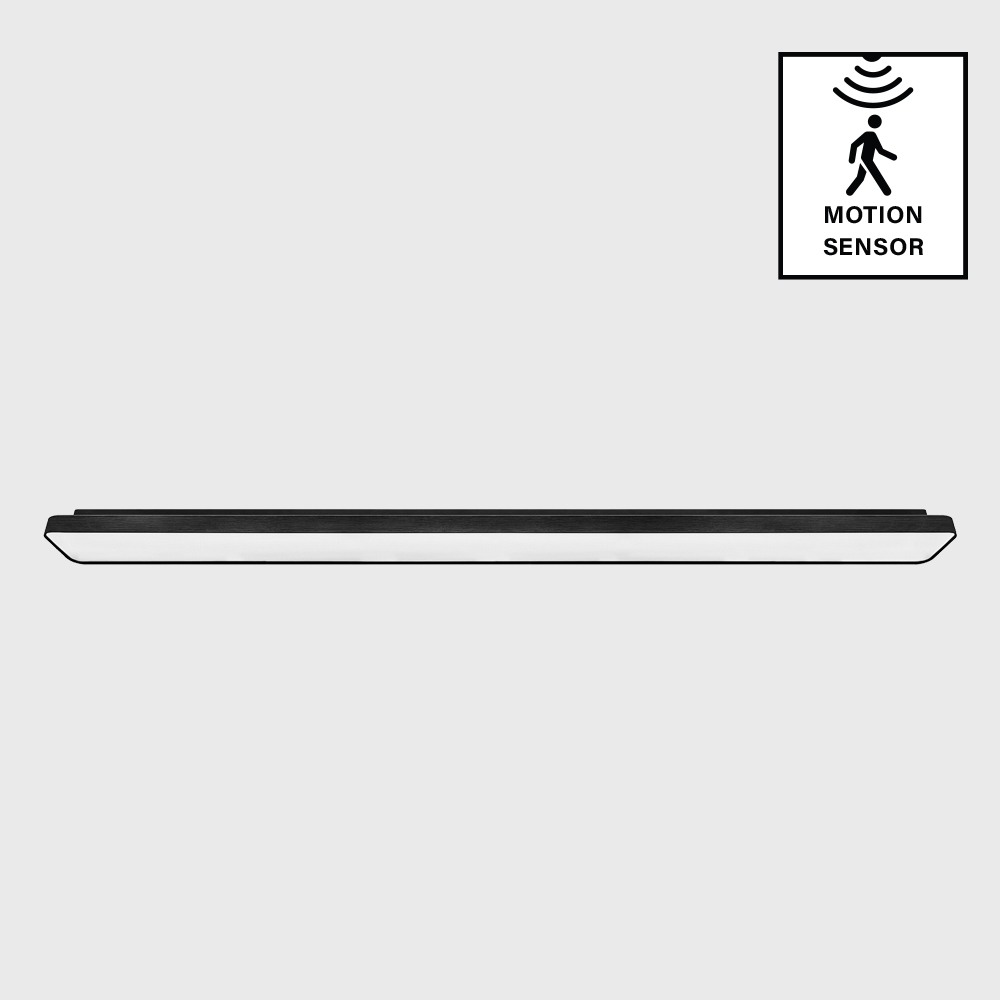

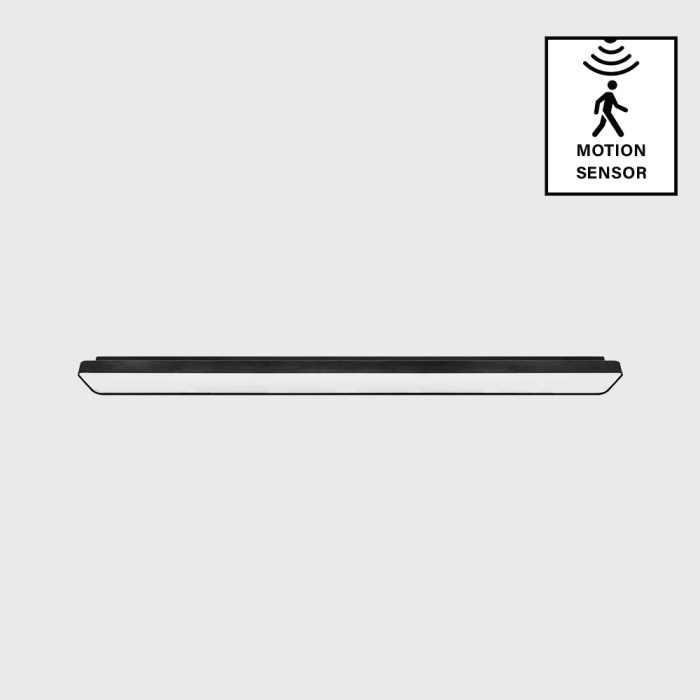

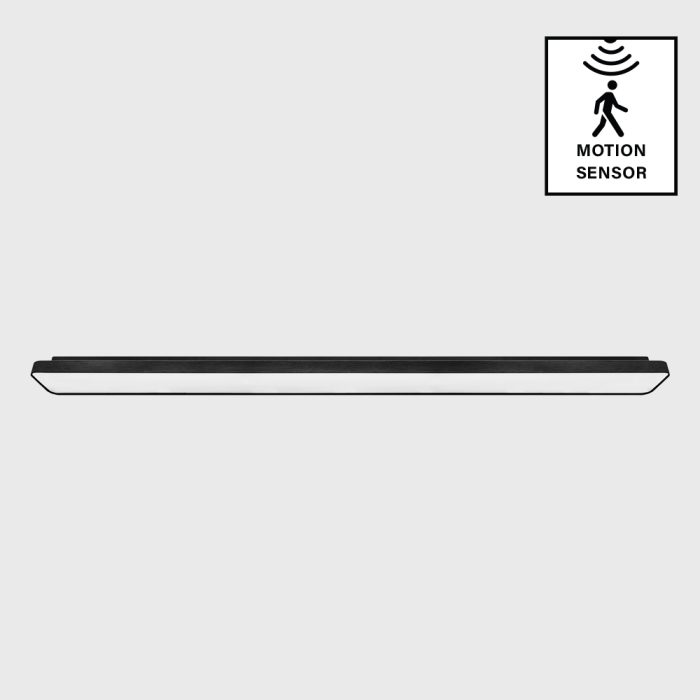

Verso 1200/1500
Sensor
Detection zone Max (D x H): 5m x 5m
Detecting distance: 25% – 100%, adjustable
Light sensibility: 10-100 lux, adjustable
Hold time: 5sec-5min, adjustable
Stand-by Period: Osec – , adjustable
Mounting height: 5m Max.
Detection angle: 150° (Ceiling and wall installation)
Specifications
- Materials: Metal / Opal Cover
- Finishes: Black/White/Silver
- Verso 1200 Lumens Flux: 2000lm 20W/2900lm 30W/3850lm 38W
- Verso 1200Efficacy: 100lm/W / 96lm/W / 101lm/W
- Verso 1500 Lumens Flux: 2850lm 30W/3750lm 40W/4650lm 50W
- Verso 1500 Efficacy: 95lm/W / 93lm/W / 93lm/W
- CCT: 3000K/4000K
- IP Rating: IP20
- CRI: >90
- SDCM: <3
- UGR: <19
- Lifetime: >50,000h L80
- Warranty: 5 Years
Features and Details
- Designed by NPK design Netherlands
- Minimalist design with an uniform light distribution
- Push-locking makes it ease installation
- Can be surface mounted, wall mounted or suspended
- Flicker free build-in driver
- Triac Dimming (range 1%-100%)
- DALI Dimming (DT6)
- Motion detection (Corridor Function)
- Emergency light (180 mins @ 4W)
- Ideal for both residentail and commerical applications
- The configuration of the detecting function is by setting the DIP switch. Default sensor factory settings: Detecting distance: 100%, Hold time: 1 min, Stand-by Period: 60 min (30%).
